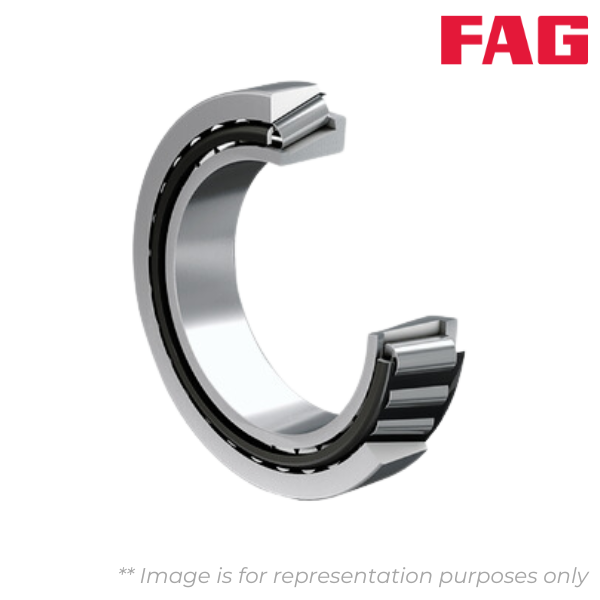

K27695-27620-XL FAG

Brand - FAG
Item Number - K27695-27620-XL FAG
Category - Tapered Roller Bearing Single Row
Weight (m) kg - 1

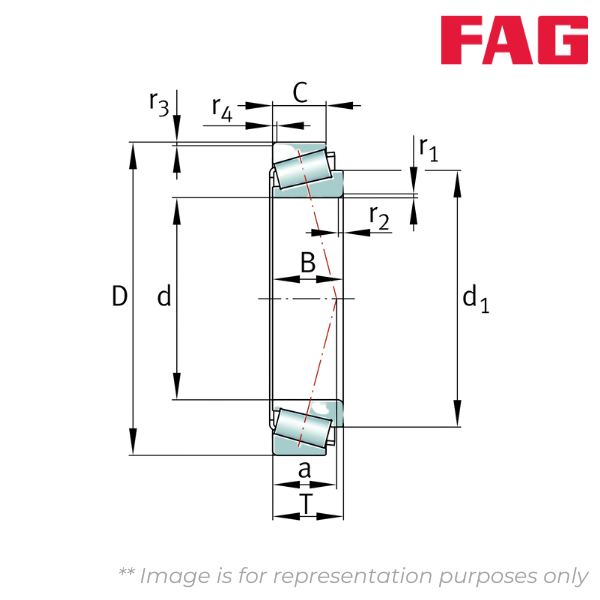

Inner Diameter (d) mm - 84.975
Inner Diameter (d) inch - 3.3455
Outer Diameter (D) mm - 125.412
Outer Diameter (D) inch - 4.9375
Inner Ring Width (B) mm - 25.4
Inner Ring Width (B) inch - 1
Outer Ring Width (C) mm - 19.845
Outer Ring Width (C) inch - 0.7813
Total Width (T) mm - 25.4
Total Width (T) inch - 1
Minimum Chamfer Dimension of Inner Ring Back Face (r1, r2 min) mm - 5.1
Minimum Chamfer Dimension of Inner Ring Back Face (r1, r2 min) inch - 0.2
Minimum Chamfer Dimension of Outer Ring Back Face (r3, r4 min) mm - 1.5
Minimum Chamfer Dimension of Outer Ring Back Face (r3, r4 min) inch - 0.06
Distance Between The Apexes of The Pressure Cones (a) mm - 26
Distance Between The Apexes of The Pressure Cones (a) inch - 1.024
Guidance Rib Diameter of Inner Ring (d1) mm - 105.9
Guidance Rib Diameter of Inner Ring (d1) inch - 4.169
Maximum Diameter of Shaft Shoulder (da) mm - 91
Maximum Diameter of Shaft Shoulder (da) inch - 3.583
Minimum diameter of shaft shoulder (db) mm - 100
Minimum diameter of shaft shoulder (db) inch - 3.937
Minimum Diameter of Housing Shoulder (Da) mm - 115
Minimum Diameter of Housing Shoulder (Da) inch - 4.528
Minimum Diameter of Housing Shoulder (Db) mm - 120
Minimum Diameter of Housing Shoulder (Db) inch - 4.724
Minimum Axial Space (Ca) mm - 4
Minimum Axial Space (Ca) inch - 0.157
Minimum Axial Space (Cb) mm - 6.5
Minimum Axial Space (Cb) inch - 0.256
Maximum Fillet Radius of Shaft (ra) mm - 5.1
Maximum Fillet Radius of Shaft (ra) inch - 0.2
Maximum Fillet Radius of Housing (rb) mm - 1.5
Maximum Fillet Radius of Housing (rb) inch - 0.06
Basic Dynamic Radial Load Rating (Cr) kN - 131
Basic Static Radial Load Rating (C0r) kN - 182
Limiting Value of Fa/Fr for The Applicability of Diff. Values of Factors X and Y (e) - 0.42
Dynamic Axial Load Factor (Y) - 1.44
Static Axial Load Factor (Y0) - 0.79
Fatigue Load Limit, Radial (Cur) kN - 28.5
Limiting Speed (nG) min–1 - 6100
