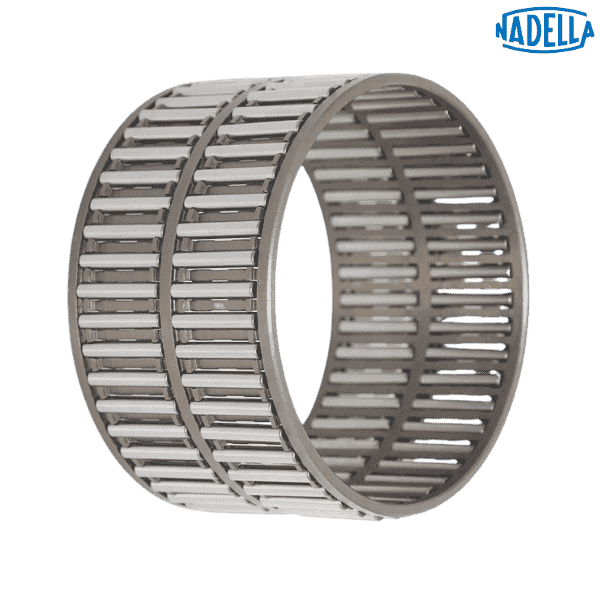

K26x30x22ZW NADELLA

Brand - NADELLA
Item Number - K26x30x22ZW NADELLA
Category - Radial Needle Roller and Cage Assemblies Single Row

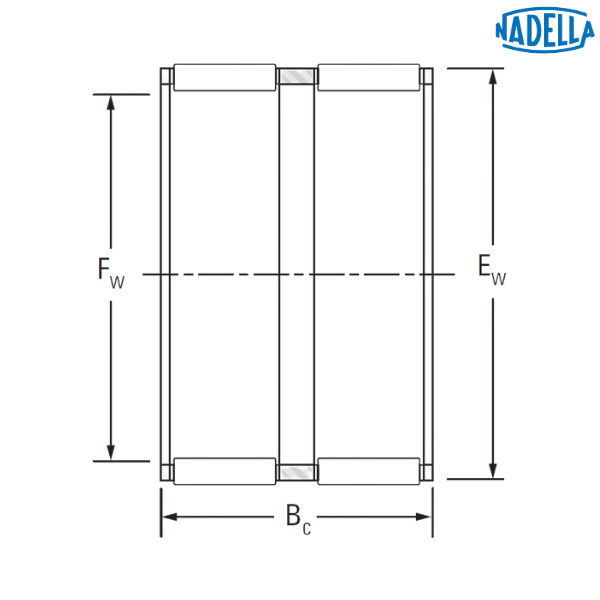

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 26 mm
Diameter of the Inner Raceway (Fw) - 26 mm
Dimension (Ew) - 30 mm
Dimension (Bc) - 22 mm
Dynamic Load Rating (C) - 16.7 mm
Static Load Rating (C0) - 30.2 mm
Speed Rating with Grease - 10000 rpm
Speed Rating with Oil - 16000 rpm
Maximum Mounting Dimension (S) - 26 mm
Minimum Mounting Dimension (S) - 25.991 mm
Maximum Mounting Dimension (H) - 30.007 mm
Minimum Mounting Dimension (H) - 0.018 mm
Weight - 0.018 kg

Description of Suffixes and Prefixes:
K - Needle Roller and Cage Assemblies
ZW - Double Row

♦♦ Images are for representation purposes only
