Description
Brand - FAG
Item Number - K25877-25821-XL FAG

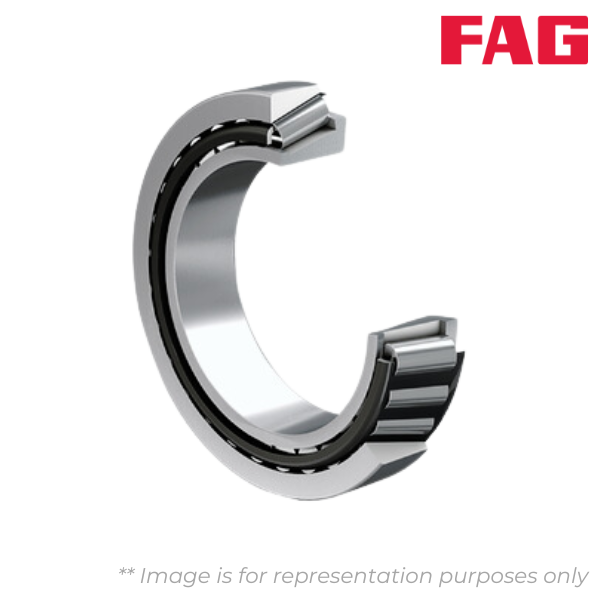

Category - Tapered Roller Bearing Single Row
Weight (m) kg - 0.462

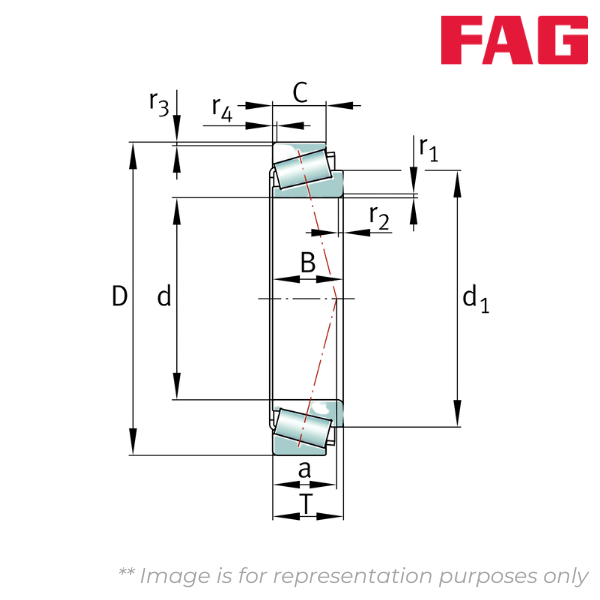

Inner Diameter (d) mm - 34.925
Inner Diameter (d) inch - 1.375
Outer Diameter (D) mm - 73.025
Outer Diameter (D) inch - 2.875
Inner Ring Width (B) mm - 24.608
Inner Ring Width (B) inch - 0.9688
Outer Ring Width (C) mm - 19.05
Outer Ring Width (C) inch - 0.75
Total Width (T) mm - 23.812
Total Width (T) inch - 0.9375
Minimum Chamfer Dimension of Inner Ring Back Face (r1, r2 min) mm - 1.5
Minimum Chamfer Dimension of Inner Ring Back Face (r1, r2 min) inch - 0.06
Minimum Chamfer Dimension of Outer Ring Back Face (r3, r4 min) mm - 0.8
Minimum Chamfer Dimension of Outer Ring Back Face (r3, r4 min) inch - 0.03
Distance Between The Apexes of The Pressure Cones (a) mm - 16
Distance Between The Apexes of The Pressure Cones (a) inch - 0.63
Guidance Rib Diameter of Inner Ring (d1) mm - 53.9
Guidance Rib Diameter of Inner Ring (d1) inch - 2.122
Maximum Diameter of Shaft Shoulder (da) mm - 43
Maximum Diameter of Shaft Shoulder (da) inch - 1.693
Minimum diameter of shaft shoulder (db) mm - 46
Minimum diameter of shaft shoulder (db) inch - 1.811
Minimum Diameter of Housing Shoulder (Da) mm - 62
Minimum Diameter of Housing Shoulder (Da) inch - 2.441
Minimum Diameter of Housing Shoulder (Db) mm - 67
Minimum Diameter of Housing Shoulder (Db) inch - 2.638
Minimum Axial Space (Ca) mm - 5
Minimum Axial Space (Ca) inch - 0.197
Minimum Axial Space (Cb) mm - 4
Minimum Axial Space (Cb) inch - 0.157
Maximum Fillet Radius of Shaft (ra) mm - 1.5
Maximum Fillet Radius of Shaft (ra) inch - 0.06
Maximum Fillet Radius of Housing (rb) mm - 0.8
Maximum Fillet Radius of Housing (rb) inch - 0.03
Basic Dynamic Radial Load Rating (Cr) kN - 78
Basic Static Radial Load Rating (C0r) kN - 78
Limiting Value of Fa/Fr for The Applicability of Diff. Values of Factors X and Y (e) - 0.29
Dynamic Axial Load Factor (Y) - 2.07
Static Axial Load Factor (Y0) - 1.14
Fatigue Load Limit, Radial (Cur) kN - 12.4
Limiting Speed (nG) min–1 - 11400
