K24x28x16F NADELLA

Brand - NADELLA
Item Number - K24x28x16F NADELLA
Category - Radial Needle Roller and Cage Assemblies Single Row

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 24 mm

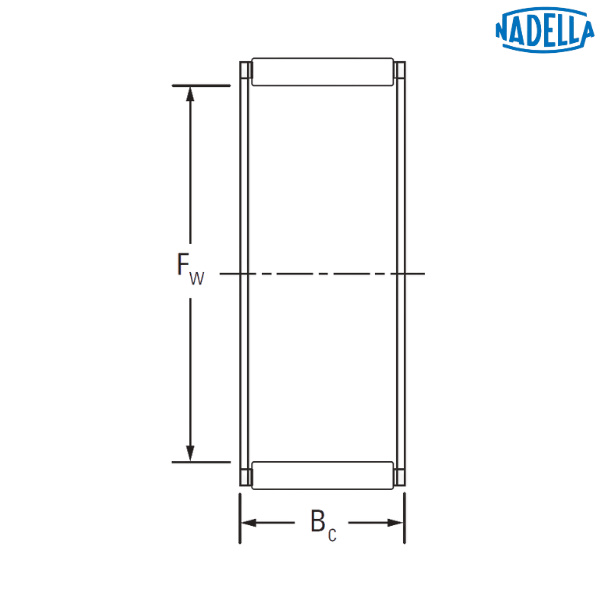

Diameter of the Inner Raceway (Fw) - 24 mm
Dimension (Ew) - 28 mm
Dimension (Bc) - 16 mm
Dynamic Load Rating (C) - 12.6 mm
Static Load Rating (C0) - 20.4 mm
Speed Rating with Grease - 12000 rpm
Speed Rating with Oil - 18000 rpm
Maximum Mounting Dimension (S) - 24 mm
Minimum Mounting Dimension (S) - 23.991 mm
Maximum Mounting Dimension (H) - 28.02 mm
Minimum Mounting Dimension (H) - 28.007 mm
Weight - 0.012 kg

Description of Suffixes and Prefixes:
K - Needle Roller and Cage Assemblies
F - Machined Cage
