Description
Brand - TIMKEN
Item Number - K24005 TIMKEN
Category - Cup Shims
Thickness (mm) - 0.13
Thickness (inch) - 0.005
Cap Screw Number - 6
Cap Screw Size (mm) - 19
Cap Screw Size (inch) - 0.75

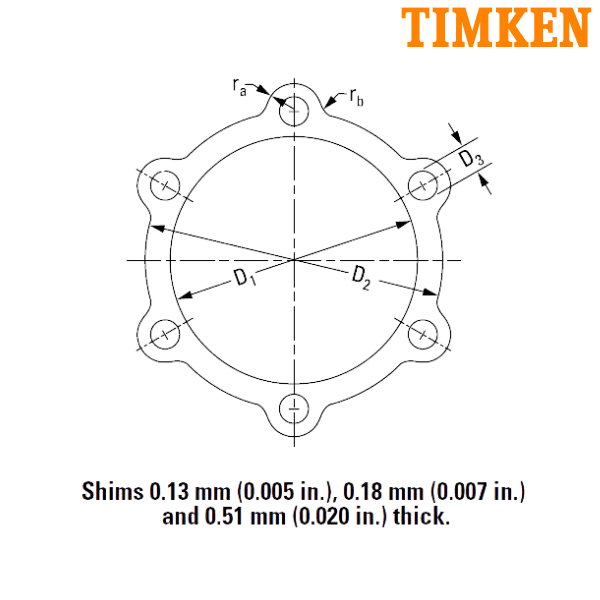

D1 (mm) - 254.8
D1 (inch) - 10.03
D2 (mm) - 292.1
D2 (inch) - 11.5
D3 (mm) - 19.8
D3 (inch) - 0.78
ra (mm) - 19
ra (inch) - 0.75
rb (mm) - 9.7
rb (inch) - 0.38
** Images are for representation purposes only
