K22x32x24F NADELLA

Brand - NADELLA
Item Number - K22x32x24F NADELLA
Category - Radial Needle Roller and Cage Assemblies Single Row

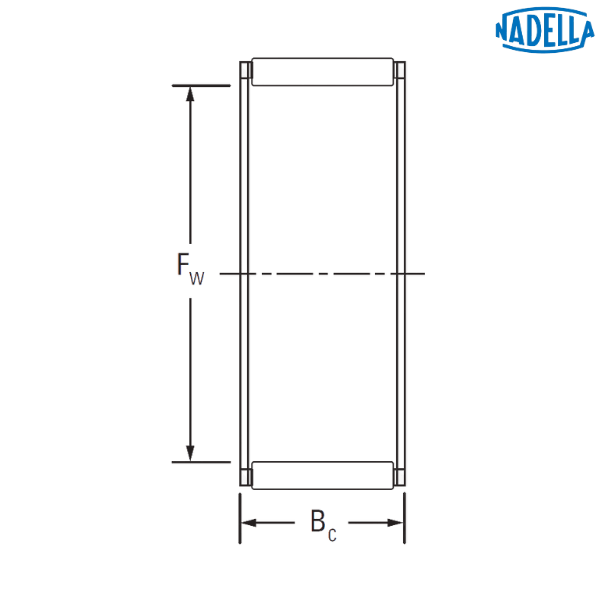

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 22 mm
Diameter of the Inner Raceway (Fw) - 22 mm
Dimension (Ew) - 32 mm
Dimension (Bc) - 24 mm
Dynamic Load Rating (C) - 33.1 mm
Static Load Rating (C0) - 37.9 mm
Speed Rating with Grease - 14000 rpm
Speed Rating with Oil - 22000 rpm
Maximum Mounting Dimension (S) - 22 mm
Minimum Mounting Dimension (S) - 21.991 mm
Maximum Mounting Dimension (H) - 32.025 mm
Minimum Mounting Dimension (H) - 32.009 mm
Weight - 0.046 kg

Description of Suffixes and Prefixes:
K - Needle Roller and Cage Assemblies
F - Machined Cage

♦♦ Images are for representation purposes only
