Description
Brand - ZEN
Item Number - K22X32X24 ZEN
Category - K Needle Roller Bearing

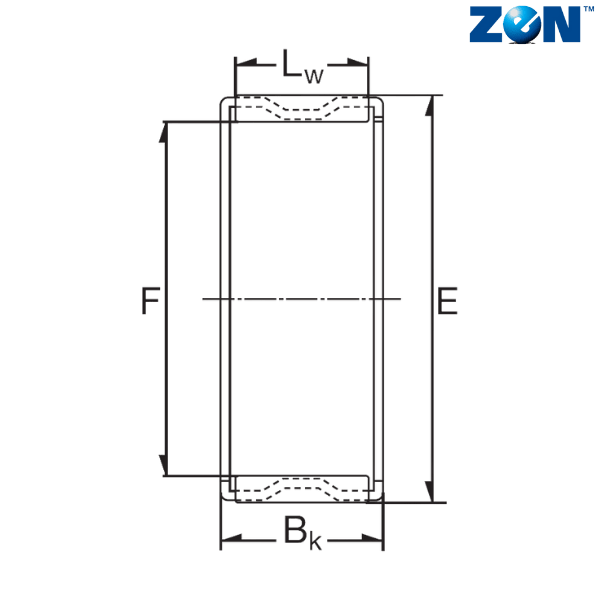

Inner Diameter (d) mm - 23.00
Outer Diameter (D) mm - 32.00
Width (b) mm - 24.00
Dynamic Load Rating (N) - 33500
Static Load Rating (N) - 39500
Limiting Speed - 16000
Weight (kg) - 0.0434
Radial Play - 0.005-0.02
Outer Ring Material - AISI52100
Inner Ring Material - AISI52100
Ball Material - AISI52100

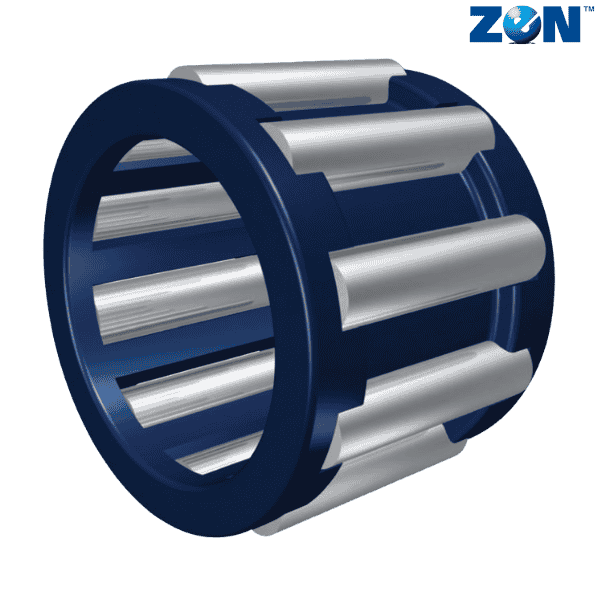

** Images are for representation purposes only
