Description
Brand - ZEN
Item Number - K22X28X23 ZEN
Category - K Needle Roller Bearing
Inner Diameter (d) mm - 22.00
Outer Diameter (D) mm - 28.00
Width (b) mm - 23.00
Dynamic Load Rating (N) - 20000
Static Load Rating (N) - 27000
Limiting Speed - 17000
Weight (kg) - 0.026
Radial Play - 0.005-0.02
Outer Ring Material - AISI52100
Inner Ring Material - AISI52100
Ball Material - AISI52100

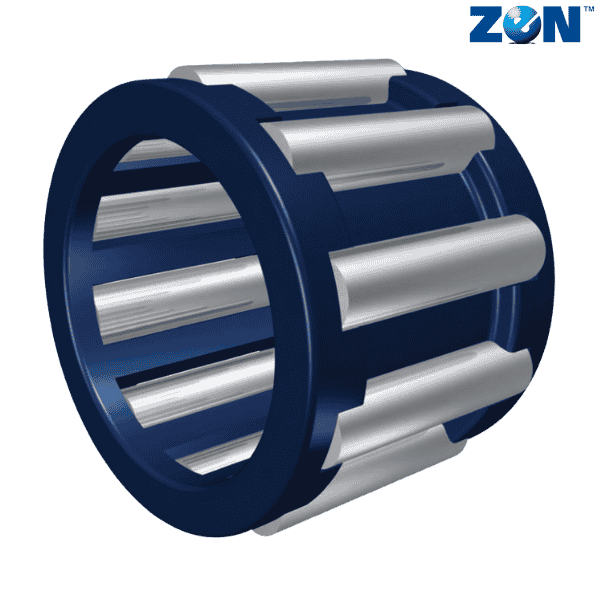

** Images are for representation purposes only
