Description
Brand - TIMKEN
Item Number - K20805 TIMKEN
Category - Cup Shims
Thickness (mm) - 0.13
Thickness (inch) - 0.005
Cap Screw Number - 4
Cap Screw Size (mm) - 9.7
Cap Screw Size (inch) - 0.38
D1 (mm) - 51.6
D1 (inch) - 2.03
D2 (mm) - 69.8
D2 (inch) - 2.75
D3 (mm) - 10.4
D3 (inch) - 0.41
ra (mm) - 9.7
ra (inch) - 0.38
rb (mm) - 4.8
rb (inch) - 0.19

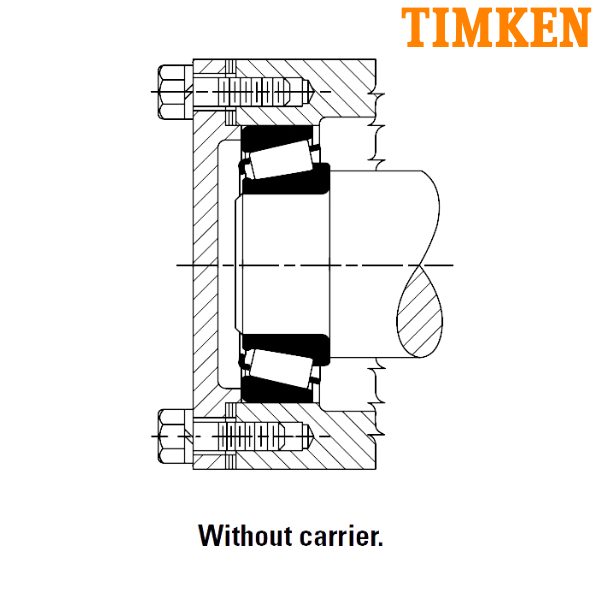

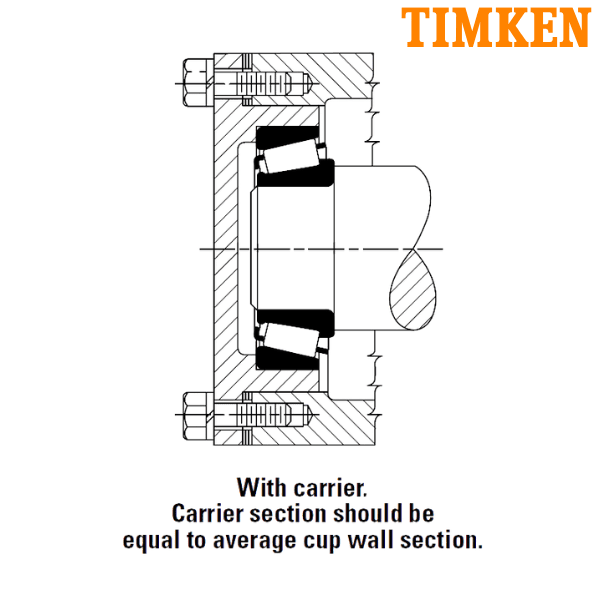

** Images are for representation purposes only
