Description
Brand - INA
Item Number - K16X20X17 INA
Category - Needle Roller and Cage Assemblies, Single Row
Weight (m) kg - 10.4

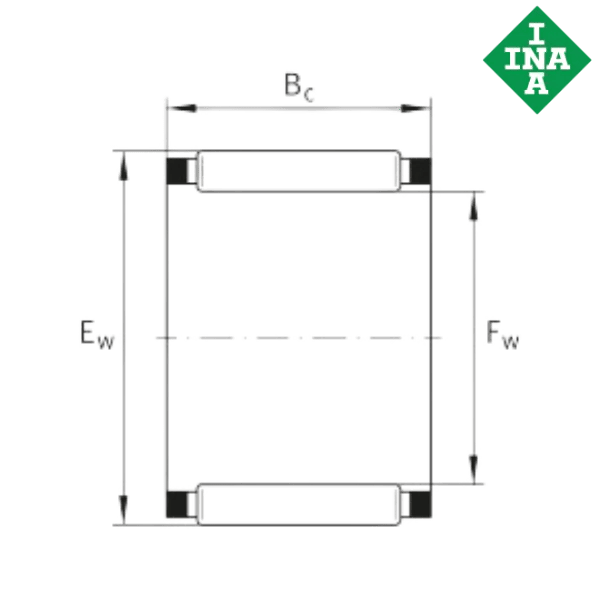

Inner Diameter of Needle Roller Complement (Fw) mm - 16
Outer Envelope Circle (Ew) mm - 20
Width (Bc) mm - 17
Basic Dynamic Radial Load Rating (Cr) N - 11700
Basic Static Radial Load Rating (C0r) N - 16800
Radial Fatigue Load Limit (Cur) N - 2190
Limiting Speed (nG) min–1 - 23600
Reference Speed (nB) min–1 - 15200
