Description
Brand - INA
Item Number - K16X20X10 INA
Category - Needle Roller and Cage Assemblies, Single Row
Weight (m) kg - 5

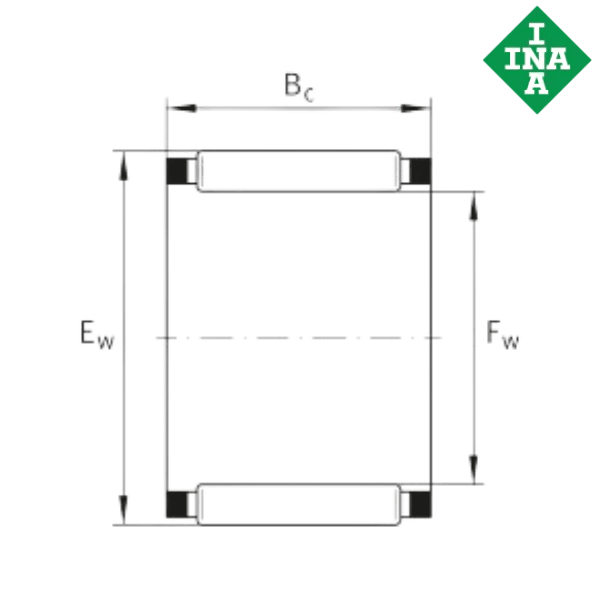

Inner Diameter of Needle Roller Complement (Fw) mm - 16
Outer Envelope Circle (Ew) mm - 20
Width (Bc) mm - 10
Basic Dynamic Radial Load Rating (Cr) N - 7800
Basic Static Radial Load Rating (C0r) N - 9900
Radial Fatigue Load Limit (Cur) N - 1230
Limiting Speed (nG) min–1 - 23600
Reference Speed (nB) min–1 - 15200
** Images are for representation purpoeses only
