K15x19x22ZW NADELLA

Brand - NADELLA
Item Number - K15x19x22ZW NADELLA

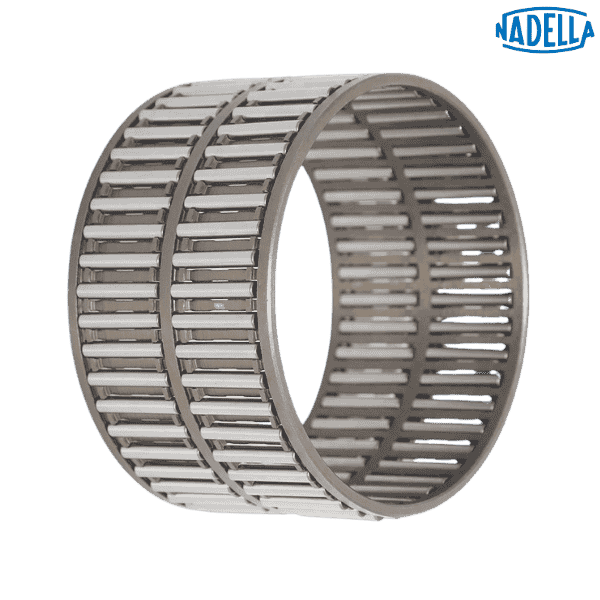

Category - Radial Needle Roller and Cage Assemblies Single Row

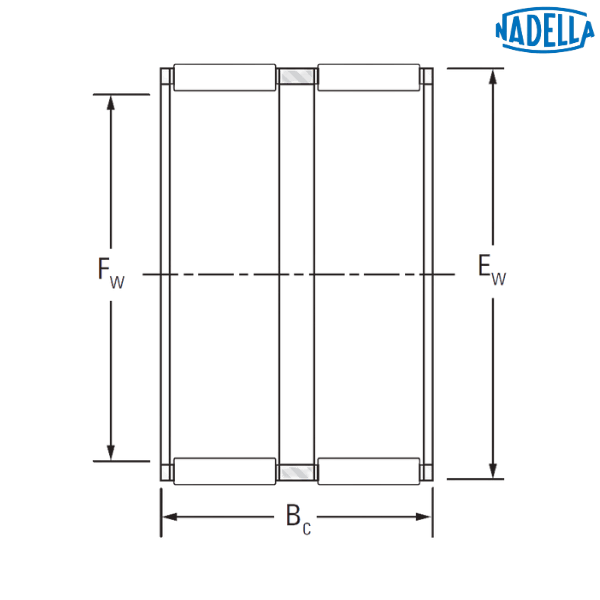

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 15 mm
Diameter of the Inner Raceway (Fw) - 15 mm
Dimension (Ew) - 19 mm
Dimension (Bc) - 22 mm
Dynamic Load Rating (C) - 12.2 mm
Static Load Rating (C0) - 17 mm
Speed Rating with Grease - 18000 rpm
Speed Rating with Oil - 28000 rpm
Maximum Mounting Dimension (S) - 15 mm
Minimum Mounting Dimension (S) - 14.992 mm
Maximum Mounting Dimension (H) - 19.02 mm
Minimum Mounting Dimension (H) - 19.007 mm
Weight - 0.01 kg

Description of Suffixes and Prefixes:
K - Needle Roller and Cage Assemblies
ZW - Double Row
