Description
Brand - FAG
Item Number - K15106-15250-X FAG
Category - Tapered Roller Bearing Single Row
Weight (m) kg - 0.324

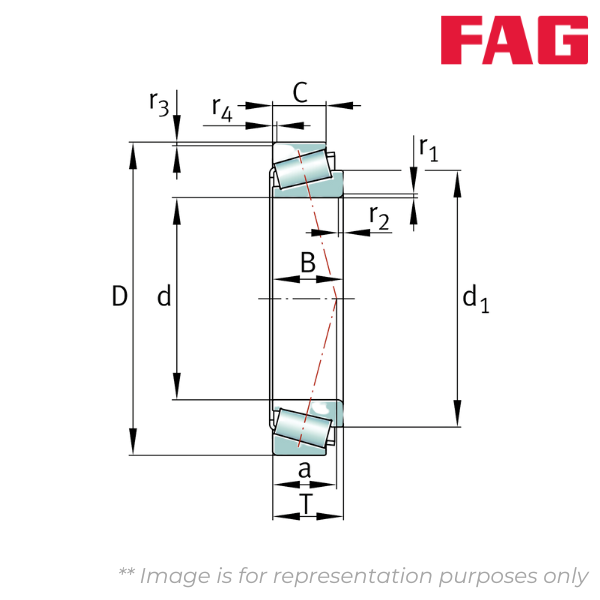

Inner Diameter (d) mm - 26.988
Inner Diameter (d) inch - 1.0625
Outer Diameter (D) mm - 63.5
Outer Diameter (D) inch - 2.5
Inner Ring Width (B) mm - 20.638
Inner Ring Width (B) inch - 0.8125
Outer Ring Width (C) mm - 15.875
Outer Ring Width (C) inch - 0.625
Total Width (T) mm - 20.638
Total Width (T) inch - 0.8125
Minimum Chamfer Dimension of Inner Ring Back Face (r1, r2 min) mm - 0.8
Minimum Chamfer Dimension of Inner Ring Back Face (r1, r2 min) inch - 0.03
Minimum Chamfer Dimension of Outer Ring Back Face (r3, r4 min) mm - 1.5
Minimum Chamfer Dimension of Outer Ring Back Face (r3, r4 min) inch - 0.06
Distance Between The Apexes of The Pressure Cones (a) mm - 15
Distance Between The Apexes of The Pressure Cones (a) inch - 0.591
Guidance Rib Diameter of Inner Ring (d1) mm - 46.8
Guidance Rib Diameter of Inner Ring (d1) inch - 1.843
Maximum Diameter of Shaft Shoulder (da) mm - 32.5
Maximum Diameter of Shaft Shoulder (da) inch - 1.28
Minimum diameter of shaft shoulder (db) mm - 33.5
Minimum diameter of shaft shoulder (db) inch - 1.319
Minimum Diameter of Housing Shoulder (Da) mm - 55
Minimum Diameter of Housing Shoulder (Da) inch - 2.165
Minimum Diameter of Housing Shoulder (Db) mm - 59
Minimum Diameter of Housing Shoulder (Db) inch - 2.323
Minimum Axial Space (Ca) mm - 3
Minimum Axial Space (Ca) inch - 0.118
Minimum Axial Space (Cb) mm - 3.5
Minimum Axial Space (Cb) inch - 0.138
Maximum Fillet Radius of Shaft (ra) mm - 0.8
Maximum Fillet Radius of Shaft (ra) inch - 0.03
Maximum Fillet Radius of Housing (rb) mm - 1.5
Maximum Fillet Radius of Housing (rb) inch - 0.06
Basic Dynamic Radial Load Rating (Cr) kN - 47.5
Basic Static Radial Load Rating (C0r) kN - 55
Limiting Value of Fa/Fr for The Applicability of Diff. Values of Factors X and Y (e) - 0.35
Dynamic Axial Load Factor (Y) - 1.71
Static Axial Load Factor (Y0) - 0.94
Fatigue Load Limit, Radial (Cur) kN - 6.3
Limiting Speed (nG) min–1 - 12100
