JSU120XP0 SILVERTHIN

Brand - SILVERTHIN
Item Number - JSU120XP0 SILVERTHIN
Category - Sealed Type 4-Point Contact Thin Section Bearing
Separator - Brass; snapover separator
Precision Class - ABEC Class 1
Bearing Type - 4-Point Contact (Type X)
Seals, Shields - Buna N Rubber Seal

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 12 inch
Outside Diameter (D) - 12.75 inch
Width - 0.5 inch
Land Diameter (L1) - 12.277 inch
Land Diameter (L2) - 12.473 inch
Approximate Weight - 1.56 lbs
Static Radial Load - 5950 lbf
Dynamic Radial Load - 2620 lbf
Static Thrust Load - 14880 lbf
Dynamic Thrust Load - 4420 lbf
Static Moment Load - 36830 in-lbs
Dynamic Moment Load - 12175 in-lbs
Torque Maximum No Load - 364 in-lbs

Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 0.71 kg

Description of Suffixes :
X - 4-Point Contact
P - Brass, snapover C & X
0 - ABEC Class 1

Other salient points to be noted :
• Brass; snapover separator 3/16'' balls
• Load capacities are not additive

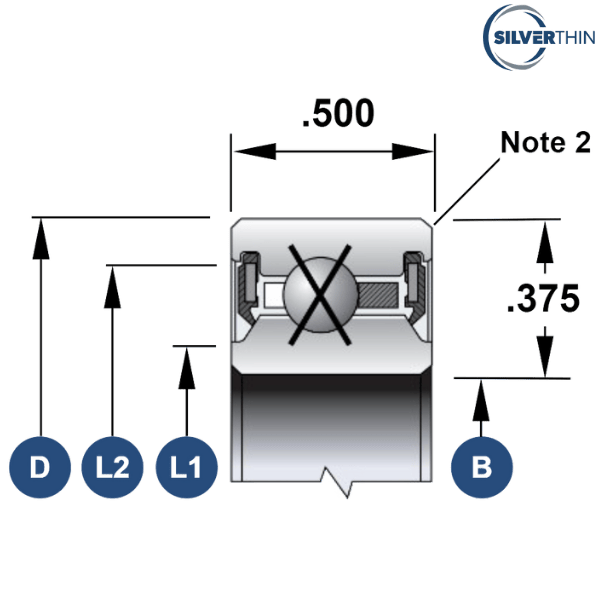

• Note 2 : The maximum shaft or housing fillet radius that the bearing corners will clear for this series is 0.040'' (refer to the image)
• Race Width Tolerance: +0.000 to -0.005''

Interchange :
SILVERTHIN - JSU120XPO
INA - CSXU1202RS
NSK - NBX30412DD
RBC - JU120XP0*RBC
KAYDON - JU120XP0
SKF - FPXU12002RS1
NTN - KXJ120LL
KAYDON - JU120XPO
FAG - L18SG12002RSD
SSB - RJU120XP0

♦ ♦ Images are for representation purposes only
