JSU075CP0 SILVERTHIN

Brand - SILVERTHIN
Item Number - JSU075CP0 SILVERTHIN
Category - Sealed Type Radial Contact Thin Section Bearing
Separator - Brass; snapover separator
Precision Class - ABEC Class 1
Bearing Type - Radial Contact (Type C)
Seals, Shields - Buna N Rubber Seal

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 7.5 inch
Outside Diameter (D) - 8.25 inch
Width - 0.5 inch
Land Diameter (L1) - 7.777 inch
Land Diameter (L2) - 7.973 inch
Approximate Weight - 0.99 lbs
Static Radial Load - 3791 lbf
Dynamic Radial Load - 1515 lbf
Torque Maximum No Load - 146 in-lbs

Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 0.449 kg

Description of Suffixes :
C - Radial Contact
P - Brass, snapover C & X
0 - ABEC Class 1

Other salient points to be noted :
• Brass; snapover separator 3/16" balls
• Load capacities are not additive

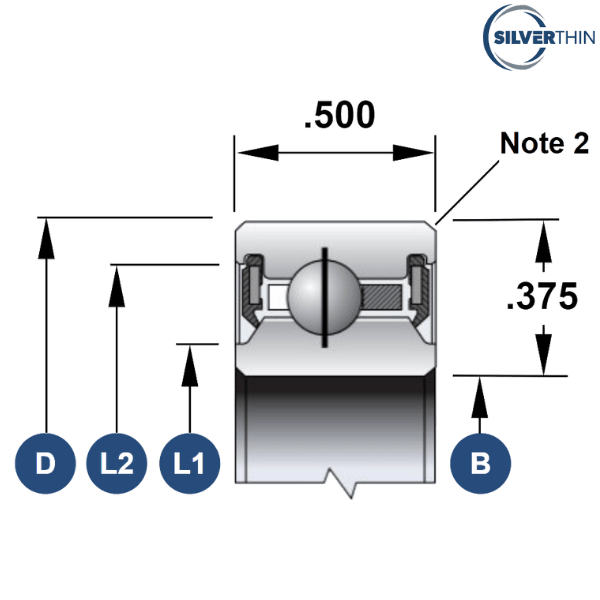

• Note 2 : The maximum shaft or housing fillet radius that the bearing corners will clear for this series is 0.040" (refer to the image)
• Race Width Tolerance: +0.000 to -0.005"

Interchange :
SILVERTHIN - JSU075CPO
INA - CSCU0752RS
NSK - NBC19012DD
RBC - JU075CP0*RBC
KAYDON - JU075CP0
SKF - FPCU7082RS1
NTN - KRJ075LL
KAYDON - JU075CPO
FAG - L10SG7082RSD
SSB - RJU075CP0

♦ ♦ Images are for representation purposes only
