JSU070CP0 SILVERTHIN

Brand - SILVERTHIN
Item Number - JSU070CP0 SILVERTHIN
Category - Sealed Type Radial Contact Thin Section Bearing
Separator - Brass; snapover separator
Precision Class - ABEC Class 1
Bearing Type - Radial Contact (Type C)
Seals, Shields - Buna N Rubber Seal

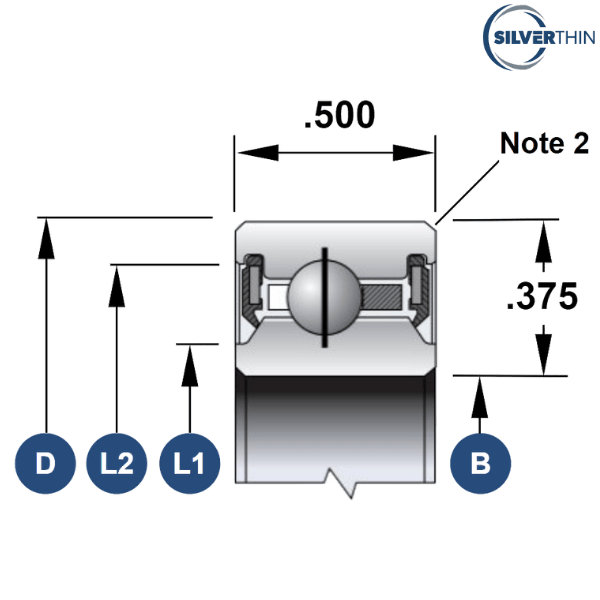

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 7 inch
Outside Diameter (D) - 7.75 inch
Width - 0.5 inch
Land Diameter (L1) - 7.277 inch
Land Diameter (L2) - 7.473 inch
Approximate Weight - 0.93 lbs
Static Radial Load - 3551 lbf
Dynamic Radial Load - 1455 lbf
Torque Maximum No Load - 130 in-lbs

Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 0.422 kg

Description of Suffixes :
C - Radial Contact
P - Brass, snapover C & X
0 - ABEC Class 1

Other salient points to be noted :
• Brass; snapover separator 3/16" balls
• Load capacities are not additive
• Note 2 : The maximum shaft or housing fillet radius that the bearing corners will clear for this series is 0.040" (refer to the image)
• Race Width Tolerance: +0.000 to -0.005"

Interchange :
SILVERTHIN - JSU070CPO
INA - CSCU0702RS
NSK - NBC17712DD
RBC - JU070CP0*RBC
KAYDON - JU070CP0
SKF - FPCU7002RS1
NTN - KRJ070LL
KAYDON - JU070CPO
FAG - L10SG7002RSD
SSB - RJU070CP0

♦ ♦ Images are for representation purposes only
