JSU065XP0 SILVERTHIN

Brand - SILVERTHIN
Item Number - JSU065XP0 SILVERTHIN
Category - Sealed Type 4-Point Contact Thin Section Bearing
Separator - Brass; snapover separator
Precision Class - ABEC Class 1
Bearing Type - 4-Point Contact (Type X)
Seals, Shields - Buna N Rubber Seal

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 6.5 inch
Outside Diameter (D) - 7.25 inch
Width - 0.5 inch
Land Diameter (L1) - 6.777 inch
Land Diameter (L2) - 6.973 inch
Approximate Weight - 0.87 lbs
Static Radial Load - 3310 lbf
Dynamic Radial Load - 1850 lbf
Static Thrust Load - 8270 lbf
Dynamic Thrust Load - 2990 lbf
Static Moment Load - 11370 in-lbs
Dynamic Moment Load - 4775 in-lbs
Torque Maximum No Load - 112 in-lbs

Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 0.39 kg

Description of Suffixes :
X - 4-Point Contact
P - Brass, snapover C & X
0 - ABEC Class 1

Other salient points to be noted :
• Brass; snapover separator 3/16'' balls
• Load capacities are not additive

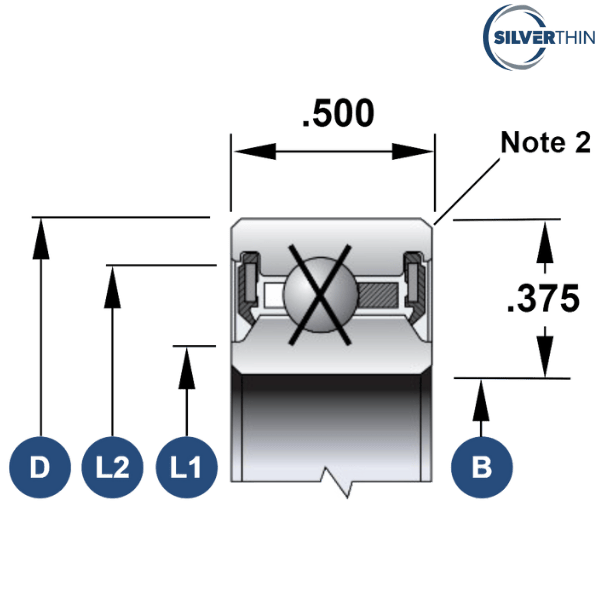

• Note 2 : The maximum shaft or housing fillet radius that the bearing corners will clear for this series is 0.040'' (refer to the image)
• Race Width Tolerance: +0.000 to -0.005''

Interchange :
SILVERTHIN - JSU065XPO
INA - CSXU0652RS
NSK - NBX16512DD
RBC - JU065XP0*RBC
KAYDON - JU065XP0
SKF - FPXU6082RS1
NTN - KXJ065LL
KAYDON - JU065XPO
FAG - L18SG6082RSD
SSB - RJU065XP0

♦ ♦ Images are for representation purposes only
