JSU040CP0 SILVERTHIN

Brand - SILVERTHIN
Item Number - JSU040CP0 SILVERTHIN
Category - Sealed Type Radial Contact Thin Section Bearing
Separator - Brass; snapover separator
Precision Class - ABEC Class 1
Bearing Type - Radial Contact (Type C)
Seals, Shields - Buna N Rubber Seal

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 4 inch
Outside Diameter (D) - 4.75 inch
Width - 0.5 inch
Land Diameter (L1) - 4.277 inch
Land Diameter (L2) - 4.473 inch
Approximate Weight - 0.55 lbs
Static Radial Load - 2100 lbf
Dynamic Radial Load - 1075 lbf
Torque Maximum No Load - 46 in-lbs

Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 0.249 kg

Description of Suffixes :
C - Radial Contact
P - Brass, snapover C & X
0 - ABEC Class 1

Other salient points to be noted :
• Brass; snapover separator 3/16" balls
• Load capacities are not additive

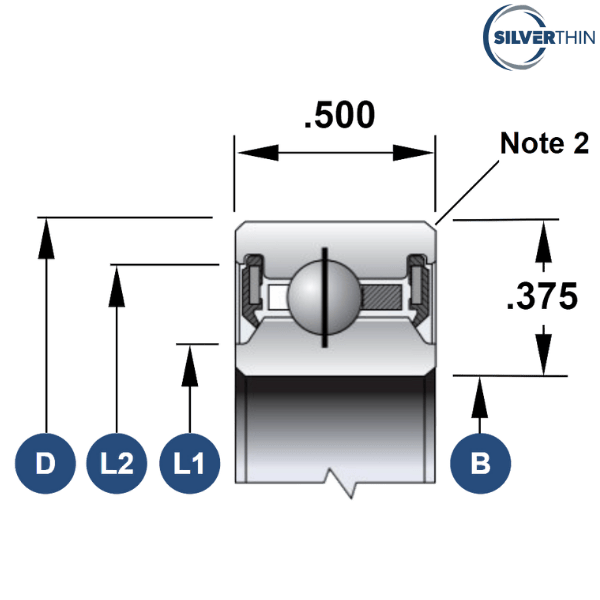

• Note 2 : The maximum shaft or housing fillet radius that the bearing corners will clear for this series is 0.040" (refer to the image)
• Race Width Tolerance: +0.000 to -0.005"

Interchange :
SILVERTHIN - JSU040CPO
INA - CSCU0402RS
NSK - NBC10112DD
RBC - JU040CP0*RBC
KAYDON - JU040CP0
SKF - FPCU4002RS1
NTN - KRJ040LL
KAYDON - JU040CPO
FAG - L10SG4002RSD
SSB - RJU040CP0
