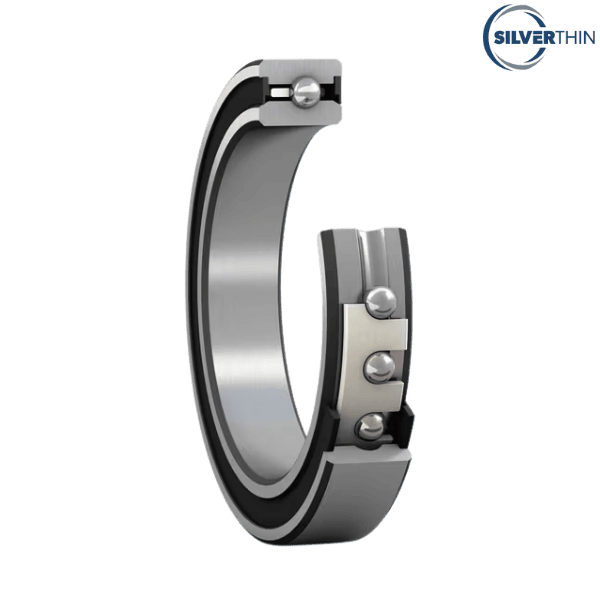

JSHA17XL0 SILVERTHIN

Brand - SILVERTHIN
Item Number - JSHA17XL0 SILVERTHIN
Category - Sealed Type 4-Point Contact Thin Section Bearing
Separator - Nylon; one piece snapover separator
Precision Class - ABEC Class 1
Bearing Type - 4-Point Contact (Type X)
Seals, Shields - Buna N Rubber Seal

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 1.75 inch
Outside Diameter (D) - 2.125 inch
Width - 0.25 inch
Land Diameter (L1) - 1.890 inch
Land Diameter (L2) - 1.985 inch
Approximate Weight - 0.05 lbs
Static Radial Load - 460 lbf
Dynamic Radial Load - 320 lbf
Static Thrust Load - 1140 lbf
Dynamic Thrust Load - 500 lbf
Static Moment Load - 440 in-lbs
Dynamic Moment Load - 230 in-lbs
Torque Maximum No Load - 6 in-lbs

Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 0.02 kg

Description of Suffixes :
X - 4-Point Contact
L - Nylon, one piece snapover C & X
0 - ABEC Class 1

Other salient points to be noted :
• Nylon; one piece snapover separator 3/32'' balls
• Load capacities are not additive

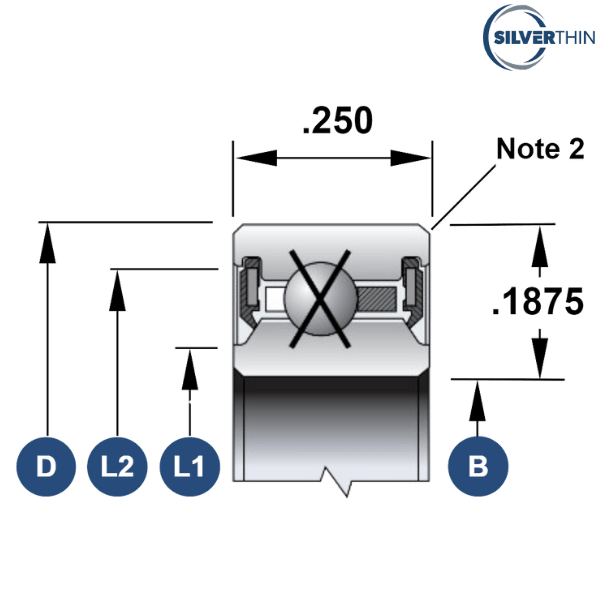

• Note 2 : The maximum shaft or housing fillet radius that the bearing corners will clear for this series is 0.015'' (refer to the image)
• Race Width Tolerance: +0.000 to -0.005''

Interchange :
SILVERTHIN - JSHA17XLO
INA - CSXU0172RS
SSB - RJHA17XL0
KAYDON - JHA17XL0
SKF - FPXH1122RS1
KAYDON - JHA17XLO
NSK - NBC04406DD

♦ ♦ Images are for representation purposes only
