JSB065CP0 SILVERTHIN

Brand - SILVERTHIN
Item Number - JSB065CP0 SILVERTHIN
Category - Sealed Type Radial Contact Thin Section Bearing
Separator - Brass; snapover separator
Precision Class - ABEC Class 1
Bearing Type - Radial Contact (Type C)
Seals, Shields - Buna N Rubber Seal

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 6.5 inch
Outside Diameter (D) - 7.125 inch
Width - 0.3125 inch
Land Diameter (L1) - 6.731 inch
Land Diameter (L2) - 6.893 inch
Approximate Weight - 0.47 lbs
Static Radial Load - 2760 lbf
Dynamic Radial Load - 1080 lbf
Torque Maximum No Load - 61 in-lbs

Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 0.213 kg

Description of Suffixes :
C - Radial Contact
P - Brass, snapover C & X
0 - ABEC Class 1

Other salient points to be noted :
• Brass; snapover separator 5/32" balls
• Load capacities are not additive

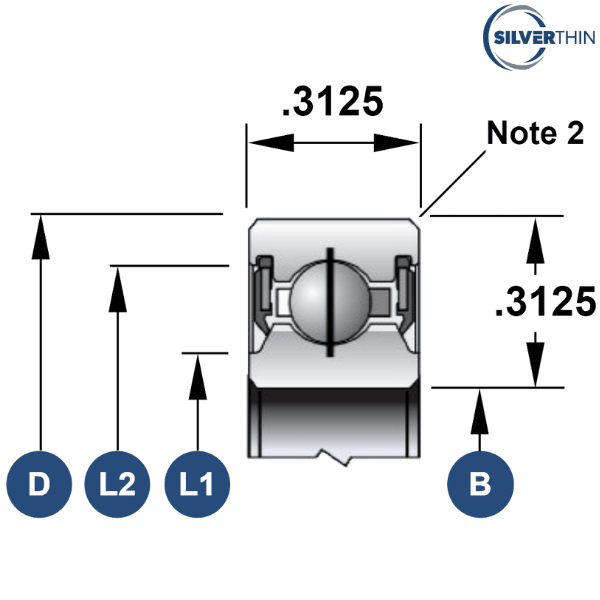

• Note 2 : The maximum shaft or housing fillet radius that the bearing corners will clear for this series is 0.040" (refer to the image)
• Race Width Tolerance: +0.000 to -0.005"

Interchange :
SILVERTHIN - JSB065CPO
INA - CSCB0652RS
NSK - NBC16507DD
KAYDON - JB065CP0
SKF - FPCB6082RS1
NTN - KRB165LL
KAYDON - JB065CPO
FAG - L10RA6082RSD
SSB - RJB065CP0

♦ ♦ Images are for representation purposes only
