JSB060XP0 SILVERTHIN

Brand - SILVERTHIN
Item Number - JSB060XP0 SILVERTHIN
Category - Sealed Type 4-Point Contact Thin Section Bearing
Separator - Brass; snapover separator
Precision Class - ABEC Class 1
Bearing Type - 4-Point Contact (Type X)
Seals, Shields - Buna N Rubber Seal

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 6 inch
Outside Diameter (D) - 6.625 inch
Width - 0.3125 inch
Land Diameter (L1) - 6.231 inch
Land Diameter (L2) - 6.393 inch
Approximate Weight - 0.44 lbs
Static Radial Load - 2560 lbf
Dynamic Radial Load - 1370 lbf
Static Thrust Load - 6400 lbf
Dynamic Thrust Load - 2220 lbf
Static Moment Load - 8080 in-lbs
Dynamic Moment Load - 3245 in-lbs
Torque Maximum No Load - 52 in-lbs

Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 0.2 kg

Description of Suffixes :
X - 4-Point Contact
P - Brass, snapover C & X
0 - ABEC Class 1

Other salient points to be noted :
• Brass; snapover separator 5/32'' balls
• Load capacities are not additive

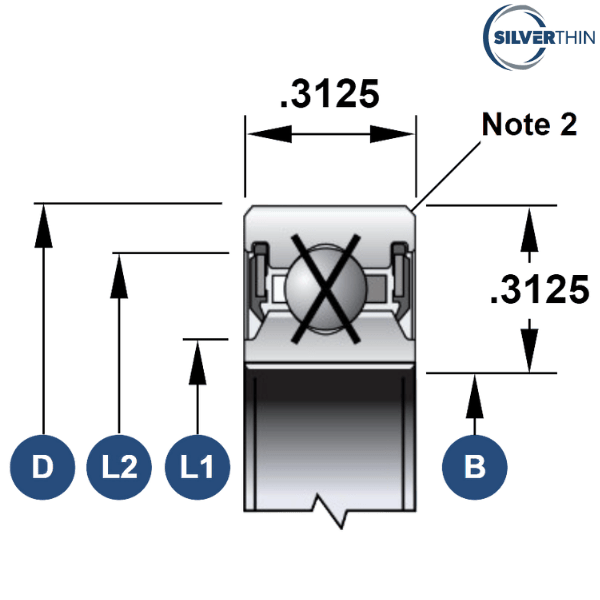

• Note 2 : The maximum shaft or housing fillet radius that the bearing corners will clear for this series is 0.040'' (refer to the image)
• Race Width Tolerance: +0.000 to -0.005''

Interchange :
SILVERTHIN - JSB060XPO
INA - CSXB0602RS
NSK - NBX15207DD
KAYDON - JB060XP0
SKF - FPXB6002RS1
NTN - KXB152LL
KAYDON - JB060XPO
FAG - L18RA6002RSD
SSB - RJB060XP0

♦ ♦ Images are for representation purposes only
