JSB050XP0 SILVERTHIN

Brand - SILVERTHIN
Item Number - JSB050XP0 SILVERTHIN
Category - Sealed Type 4-Point Contact Thin Section Bearing
Separator - Brass; snapover separator
Precision Class - ABEC Class 1
Bearing Type - 4-Point Contact (Type X)
Seals, Shields - Buna N Rubber Seal

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 5 inch
Outside Diameter (D) - 5.625 inch
Width - 0.3125 inch
Land Diameter (L1) - 5.231 inch
Land Diameter (L2) - 5.393 inch
Approximate Weight - 0.38 lbs
Static Radial Load - 2150 lbf
Dynamic Radial Load - 1235 lbf
Static Thrust Load - 5380 lbf
Dynamic Thrust Load - 1980 lbf
Static Moment Load - 5720 in-lbs
Dynamic Moment Load - 2465 in-lbs
Torque Maximum No Load - 36 in-lbs

Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 0.17 kg

Description of Suffixes :
X - 4-Point Contact
P - Brass, snapover C & X
0 - ABEC Class 1

Other salient points to be noted :
• Brass; snapover separator 5/32'' balls
• Load capacities are not additive

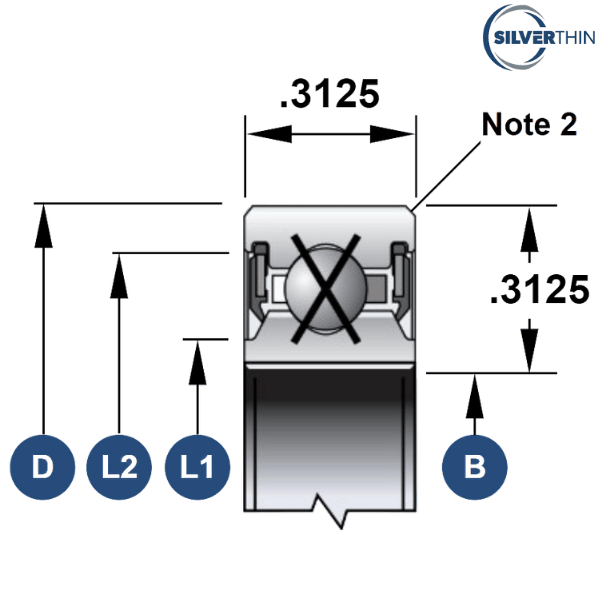

• Note 2 : The maximum shaft or housing fillet radius that the bearing corners will clear for this series is 0.040'' (refer to the image)
• Race Width Tolerance: +0.000 to -0.005''

Interchange :
SILVERTHIN - JSB050XPO
INA - CSXB0502RS
NSK - NBX12707DD
KAYDON - JB050XP0
SKF - FPXB5002RS1
NTN - KXB127LL
KAYDON - JB050XPO
FAG - L18RA5002RSD
SSB - RJB050XP0

♦ ♦ Images are for representation purposes only
