JSB045XP0 SILVERTHIN

Brand - SILVERTHIN
Item Number - JSB045XP0 SILVERTHIN
Category - Sealed Type 4-Point Contact Thin Section Bearing
Separator - Brass; snapover separator
Precision Class - ABEC Class 1
Bearing Type - 4-Point Contact (Type X)
Seals, Shields - Buna N Rubber Seal

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 4.5 inch
Outside Diameter (D) - 5.125 inch
Width - 0.3125 inch
Land Diameter (L1) - 4.731 inch
Land Diameter (L2) - 4.893 inch
Approximate Weight - 0.33 lbs
Static Radial Load - 1950 lbf
Dynamic Radial Load - 1165 lbf
Static Thrust Load - 4880 lbf
Dynamic Thrust Load - 1850 lbf
Static Moment Load - 4690 in-lbs
Dynamic Moment Load - 2105 in-lbs
Torque Maximum No Load - 28 in-lbs

Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 0.15 kg

Description of Suffixes :
X - 4-Point Contact
P - Brass, snapover C & X
0 - ABEC Class 1

Other salient points to be noted :
• Brass; snapover separator 5/32'' balls
• Load capacities are not additive

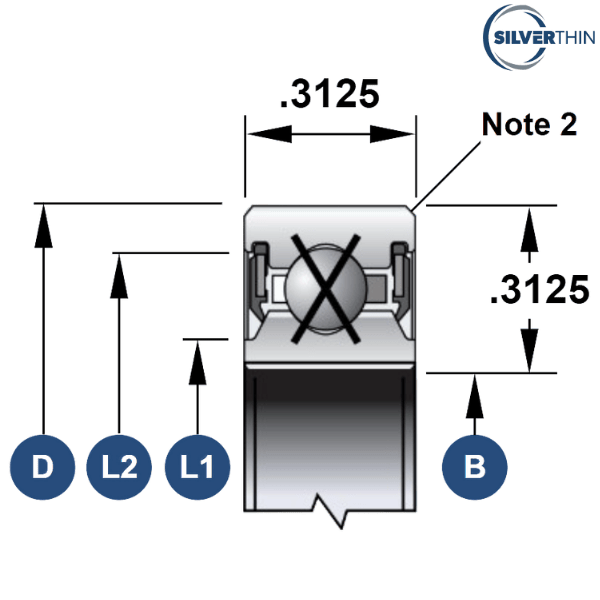

• Note 2 : The maximum shaft or housing fillet radius that the bearing corners will clear for this series is 0.040'' (refer to the image)
• Race Width Tolerance: +0.000 to -0.005''

Interchange :
SILVERTHIN - JSB045XPO
INA - CSXB0452RS
NSK - NBX11407DD
KAYDON - JB045XP0
SKF - FPXB4082RS1
NTN - KXB114LL
KAYDON - JB045XPO
FAG - L18RA4082RSD
SSB - RJB045XP0
