JSB030CP0 SILVERTHIN

Brand - SILVERTHIN
Item Number - JSB030CP0 SILVERTHIN
Category - Sealed Type Radial Contact Thin Section Bearing
Separator - Brass; snapover separator
Precision Class - ABEC Class 1
Bearing Type - Radial Contact (Type C)
Seals, Shields - Buna N Rubber Seal

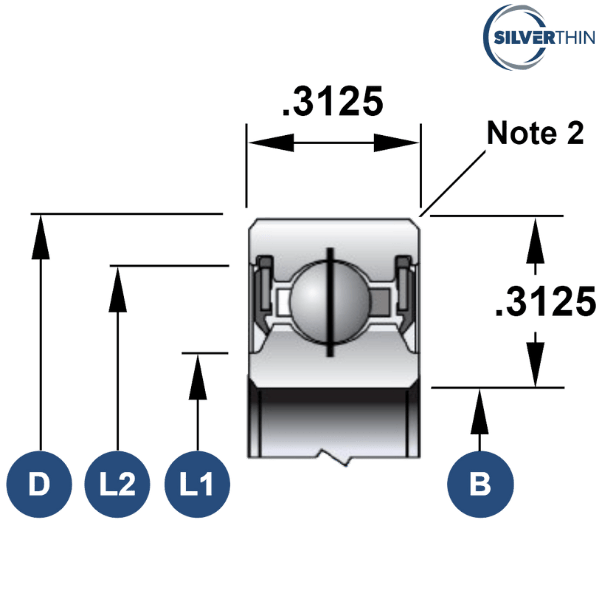

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 3 inch
Outside Diameter (D) - 3.625 inch
Width - 0.3125 inch
Land Diameter (L1) - 3.231 inch
Land Diameter (L2) - 3.393 inch
Approximate Weight - 0.24 lbs
Static Radial Load - 1340 lbf
Dynamic Radial Load - 705 lbf
Torque Maximum No Load - 12 in-lbs

Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 0.109 kg

Description of Suffixes :
C - Radial Contact
P - Brass, snapover C & X
0 - ABEC Class 1

Other salient points to be noted :
• Brass; snapover separator 5/32" balls
• Load capacities are not additive
• Note 2 : The maximum shaft or housing fillet radius that the bearing corners will clear for this series is 0.040" (refer to the image)
• Race Width Tolerance: +0.000 to -0.005"

Interchange :
SILVERTHIN - JSB030CPO
INA - CSCB0302RS
NSK - NBC07607DD
KAYDON - JB030CP0
SKF - FPCB3002RS1
NTN - KRB076LL
KAYDON - JB030CPO
FAG - L10RA3002RSD
SSB - RJB030CP0

♦ ♦ Images are for representation purposes only
