JSB025CP0 SILVERTHIN

Brand - SILVERTHIN
Item Number - JSB025CP0 SILVERTHIN
Category - Sealed Type Radial Contact Thin Section Bearing
Separator - Brass; snapover separator
Precision Class - ABEC Class 1
Bearing Type - Radial Contact (Type C)
Seals, Shields - Buna N Rubber Seal

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 2.5 inch
Outside Diameter (D) - 3.125 inch
Width - 0.3125 inch
Land Diameter (L1) - 2.731 inch
Land Diameter (L2) - 2.893 inch
Approximate Weight - 0.19 lbs
Static Radial Load - 1140 lbf
Dynamic Radial Load - 645 lbf
Torque Maximum No Load - 8 in-lbs

Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 0.086 kg

Description of Suffixes :
C - Radial Contact
P - Brass, snapover C & X
0 - ABEC Class 1

Other salient points to be noted :
• Brass; snapover separator 5/32" balls
• Load capacities are not additive

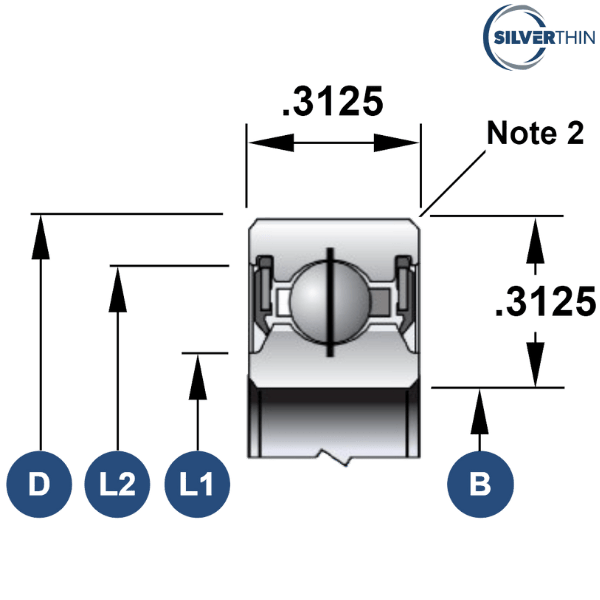

• Note 2 : The maximum shaft or housing fillet radius that the bearing corners will clear for this series is 0.040" (refer to the image)
• Race Width Tolerance: +0.000 to -0.005"

Interchange :
SILVERTHIN - JSB025CPO
INA - CSCB0252RS
NSK - NBC06307DD
KAYDON - JB025CP0
SKF - FPCB2082RS1
NTN - KRB063LL
KAYDON - JB025CPO
FAG - L10RA2082RSD
SSB - RJB025CP0

♦ ♦ Images are for representation purposes only
