JSA065XP0 SILVERTHIN

Brand - SILVERTHIN
Item Number - JSA065XP0 SILVERTHIN
Category - Sealed Type 4-Point Contact Thin Section Bearing
Separator - Brass; snapover separator
Precision Class - ABEC Class 1
Bearing Type - 4-Point Contact (Type X)
Seals, Shields - Buna N Rubber Seal

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 6.5 inch
Outside Diameter (D) - 7 inch
Width - 0.25 inch
Land Diameter (L1) - 6.686 inch
Land Diameter (L2) - 6.814 inch
Approximate Weight - 0.30 lbs
Static Radial Load - 2050 lbf
Dynamic Radial Load - 1000 lbf
Static Thrust Load - 5120 lbf
Dynamic Thrust Load - 1650 lbf
Static Moment Load - 6910 in-lbs
Dynamic Moment Load - 2535 in-lbs
Torque Maximum No Load - 61 in-lbs

Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 0.14 kg

Description of Suffixes :
X - 4-Point Contact
P - Brass, snapover C & X
0 - ABEC Class 1

Other salient points to be noted :
• Brass; snapover separator 1/8'' balls
• Load capacities are not additive

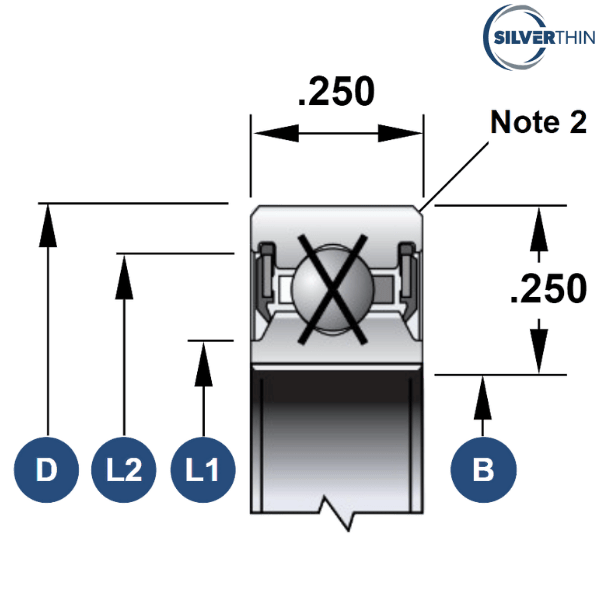

• Note 2 : The maximum shaft or housing fillet radius that the bearing corners will clear for this series is 0.025'' (refer to the image)
• Race Width Tolerance: +0.000 to -0.005''

Interchange :
SILVERTHIN - JSA065XPO
INA - CSXA0652RS
NSK - NBX16506DD
KAYDON - JA065XP0
SKF - FPXA6082RS1
NTN - KXA165LL
KAYDON - JA065XPO
FAG - L18QA6082RSD
SSB - RJA065XP0

♦ ♦ Images are for representation purposes only
