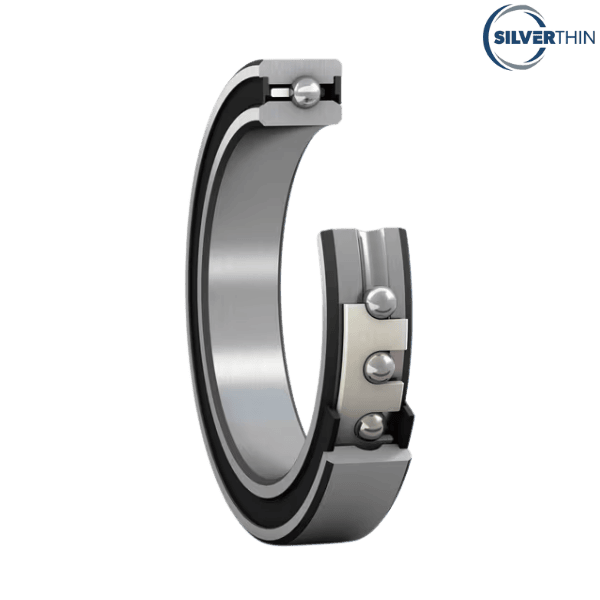

JSA030XP0 SILVERTHIN

Brand - SILVERTHIN
Item Number - JSA030XP0 SILVERTHIN
Category - Sealed Type 4-Point Contact Thin Section Bearing
Separator - Brass; snapover separator
Precision Class - ABEC Class 1
Bearing Type - 4-Point Contact (Type X)
Seals, Shields - Buna N Rubber Seal

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 3 inch
Outside Diameter (D) - 3.5 inch
Width - 0.25 inch
Land Diameter (L1) - 3.186 inch
Land Diameter (L2) - 3.314 inch
Approximate Weight - 0.15 lbs
Static Radial Load - 990 lbf
Dynamic Radial Load - 645 lbf
Static Thrust Load - 2470 lbf
Dynamic Thrust Load - 1010 lbf
Static Moment Load - 1600 in-lbs
Dynamic Moment Load - 785 in-lbs
Torque Maximum No Load - 12 in-lbs

Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 0.07 kg

Description of Suffixes :
X - 4-Point Contact
P - Brass, snapover C & X
0 - ABEC Class 1

Other salient points to be noted :
• Brass; snapover separator 1/8'' balls
• Load capacities are not additive

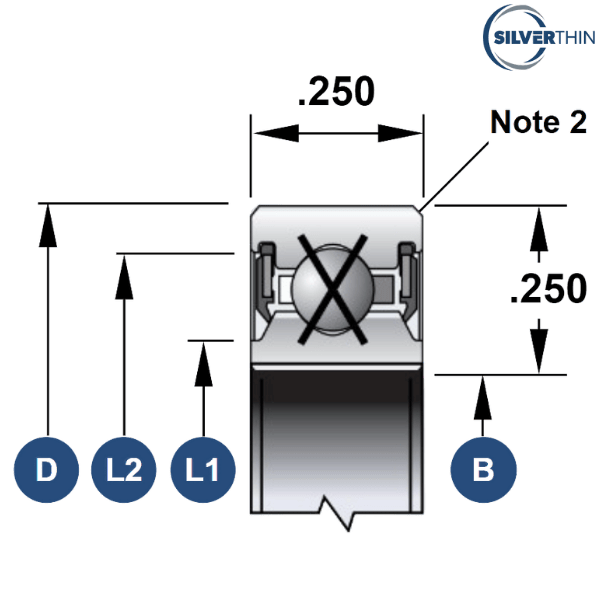

• Note 2 : The maximum shaft or housing fillet radius that the bearing corners will clear for this series is 0.025'' (refer to the image)
• Race Width Tolerance: +0.000 to -0.005''

Interchange :
SILVERTHIN - JSA030XPO
INA - CSXA0302RS
NSK - NBX07606DD
KAYDON - JA030XP0
SKF - FPXA3002RS1
NTN - KXA076LL
KAYDON - JA030XPO
FAG - L18QA3002RSD
SSB - RJA030XP0

♦ ♦ Images are for representation purposes only
