JSA030CP0 SILVERTHIN

Brand - SILVERTHIN
Item Number - JSA030CP0 SILVERTHIN
Category - Sealed Type Radial Contact Thin Section Bearing
Separator - Brass; snapover separator
Precision Class - ABEC Class 1
Bearing Type - Radial Contact (Type C)
Seals, Shields - Buna N Rubber Seal

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 3 inch
Outside Diameter (D) - 3.5 inch
Width - 0.25 inch
Land Diameter (L1) - 3.186 inch
Land Diameter (L2) - 3.314 inch
Approximate Weight - 0.14 lbs
Static Radial Load - 990 lbf
Dynamic Radial Load - 485 lbf
Torque Maximum No Load - 12 in-lbs

Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 0.063 kg

Description of Suffixes :
C - Radial Contact
P - Brass, snapover C & X
0 - ABEC Class 1

Other salient points to be noted :
• Brass; snapover separator 1/8" balls
• Load capacities are not additive

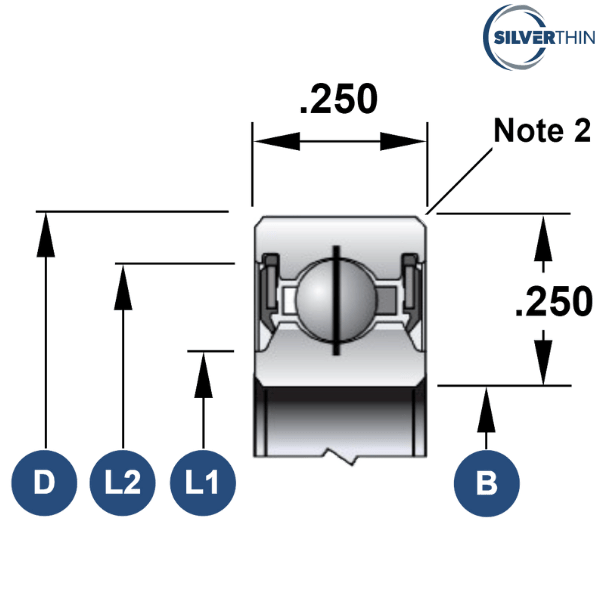

• Note 2 : The maximum shaft or housing fillet radius that the bearing corners will clear for this series is 0.025" (refer to the image)
• Race Width Tolerance: +0.000 to -0.005"

Interchange :
SILVERTHIN - JSA030CPO
INA - CSCA0302RS
NSK - NBC07606DD
KAYDON - JA030CP0
SKF - FPCA3002RS1
NTN - KRA076LL
KAYDON - JA030CPO
FAG - L10QA3002RSD
SSB - RJA030CP0

♦ ♦ Images are for representation purposes only
