JSA020CP0 SILVERTHIN

Brand - SILVERTHIN
Item Number - JSA020CP0 SILVERTHIN
Category - Sealed Type Radial Contact Thin Section Bearing
Separator - Brass; snapover separator
Precision Class - ABEC Class 1
Bearing Type - Radial Contact (Type C)
Seals, Shields - Buna N Rubber Seal

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 2 inch
Outside Diameter (D) - 2.5 inch
Width - 0.25 inch
Land Diameter (L1) - 2.186 inch
Land Diameter (L2) - 2.314 inch
Approximate Weight - 0.10 lbs
Static Radial Load - 680 lbf
Dynamic Radial Load - 395 lbf
Torque Maximum No Load - 6 in-lbs

Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 0.045 kg

Description of Suffixes :
C - Radial Contact
P - Brass, snapover C & X
0 - ABEC Class 1

Other salient points to be noted :
• Brass; snapover separator 1/8" balls
• Load capacities are not additive

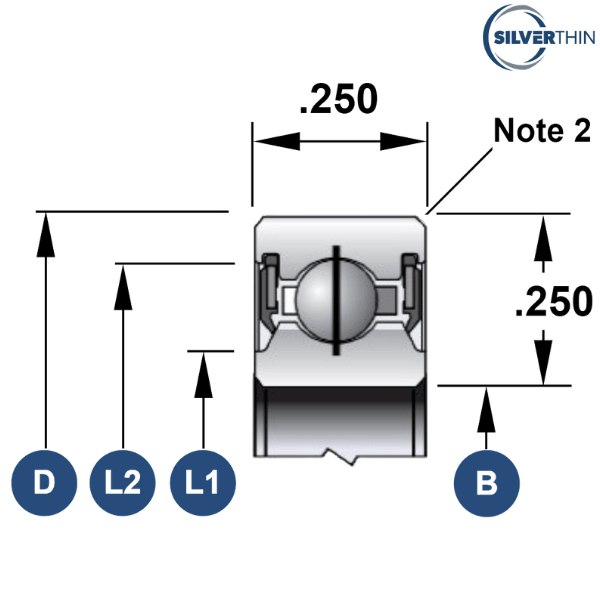

• Note 2 : The maximum shaft or housing fillet radius that the bearing corners will clear for this series is 0.025" (refer to the image)
• Race Width Tolerance: +0.000 to -0.005"

Interchange :
SILVERTHIN - JSA020CPO
INA - CSCA0202RS
NSK - NBC05006DD
KAYDON - JA020CP0
SKF - FPCA2002RS1
NTN - KRA050LL
KAYDON - JA020CPO
FAG - L10QA2002RSD
SSB - RJA020CP0

♦ ♦ Images are for representation purposes only
