Description
Brand - NADELLA
Item Number - JRZ8xl2x12JS1 NADELLA
Category - Inner Rings

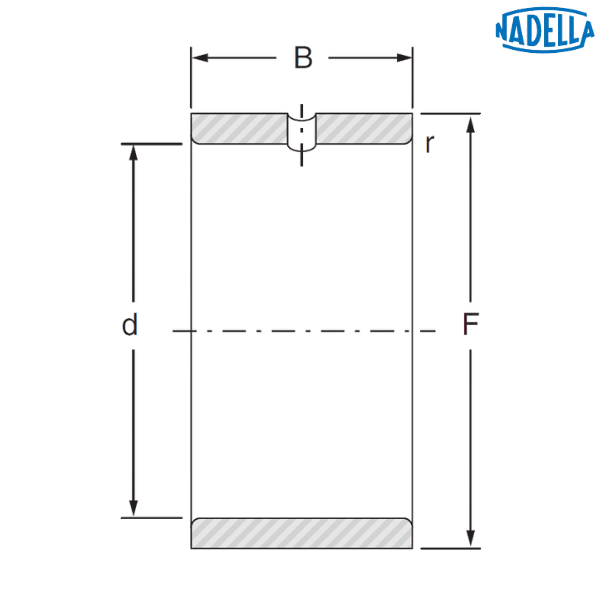

Principal Dimensions & Load Ratings (Metric) :
Inner Diameter (d) - 8 mm
Pitch Diameter (F) - 12 mm
Width(B) - 12 mm
Shaft Diameter(∅) - 8 mm
Minimum Chamfer Dimension(rs) - 0.3
Weight - 0.006 kg
Description of Suffixes and Prefixes:
JRZ - Inner ring for bushes and bearings, without chamfer on the raceway. Radial clearance other than standard for complete bearings with thick inner and outer ring.
JS1 - With lubrication hole

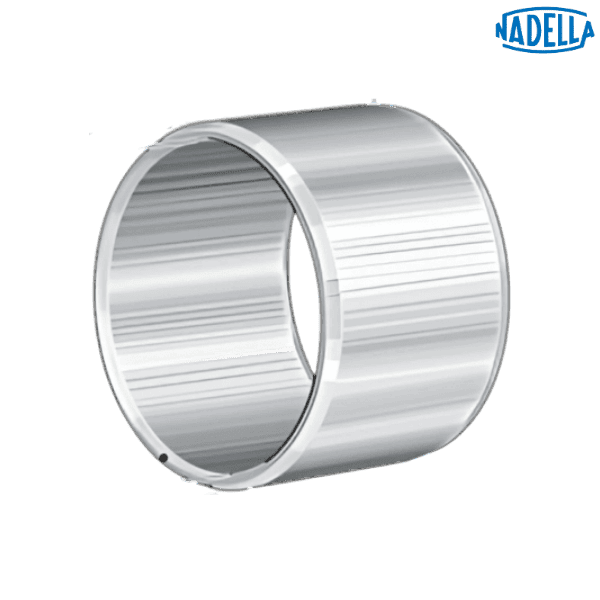

♦ ♦ Images are for representation purposes only
Item Number - JRZ8xl2x12JS1 NADELLA
Category - Inner Rings
Principal Dimensions & Load Ratings (Metric) :
Inner Diameter (d) - 8 mm
Pitch Diameter (F) - 12 mm
Width(B) - 12 mm
Shaft Diameter(∅) - 8 mm
Minimum Chamfer Dimension(rs) - 0.3
Weight - 0.006 kg
Description of Suffixes and Prefixes:
JRZ - Inner ring for bushes and bearings, without chamfer on the raceway. Radial clearance other than standard for complete bearings with thick inner and outer ring.
JS1 - With lubrication hole
♦ ♦ Images are for representation purposes only
