Description
Brand - NADELLA
Item Number - JRZ8x12x12JS1 NADELLA
Category - Internal Ring for Needle Bushes

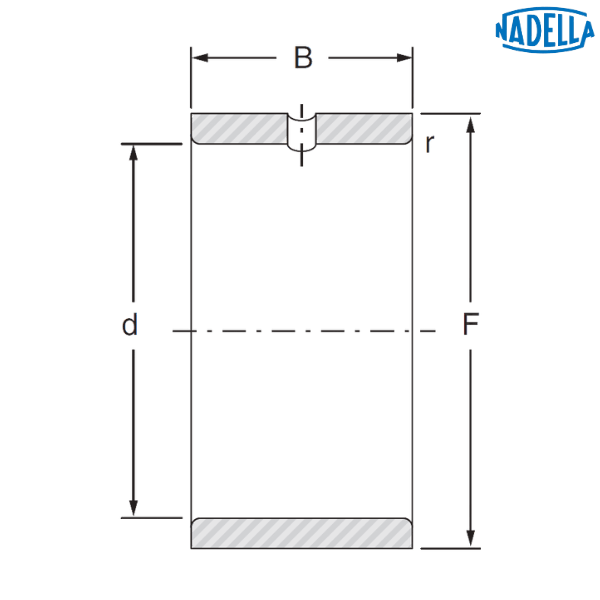

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 8 mm
Inner Diameter (d) - 8 mm
Outer Diameter (F) - 12 mm
Width (B) - 12 mm
Minimum Chamfer Dimension (rs) - 0.3 mm
Weight - 0.006 kg
Description of Suffixes and Prefixes :
JRZ - Inner ring for bushes and bearings, without chamfer on the raceway. Radial clearance other than standard for complete bearings with thick inner and outer ring.

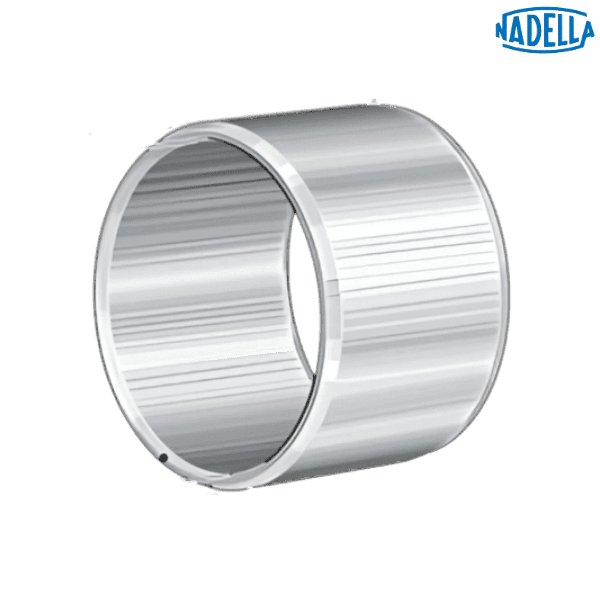

♦ ♦ Images are for representation purposes only
Item Number - JRZ8x12x12JS1 NADELLA
Category - Internal Ring for Needle Bushes
Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 8 mm
Inner Diameter (d) - 8 mm
Outer Diameter (F) - 12 mm
Width (B) - 12 mm
Minimum Chamfer Dimension (rs) - 0.3 mm
Weight - 0.006 kg
Description of Suffixes and Prefixes :
JRZ - Inner ring for bushes and bearings, without chamfer on the raceway. Radial clearance other than standard for complete bearings with thick inner and outer ring.
♦ ♦ Images are for representation purposes only
