Description
Brand - NADELLA
Item Number - JRZ20x25x18JS1 NADELLA
Category - Internal Ring for Needle Bushes
Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 20 mm
Inner Diameter (d) - 20 mm
Outer Diameter (F) - 25 mm
Width (B) - 18 mm
Minimum Chamfer Dimension (rs) - 0.3 mm
Weight - 0.025 kg
Description of Suffixes and Prefixes :
JRZ - Inner ring for bushes and bearings, without chamfer on the raceway. Radial clearance other than standard for complete bearings with thick inner and outer ring.

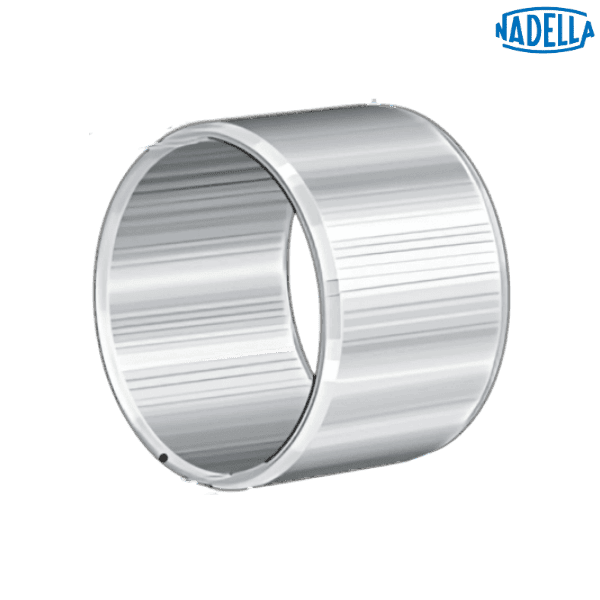

♦ ♦ Images are for representation purposes only
