Description
Brand - NADELLA

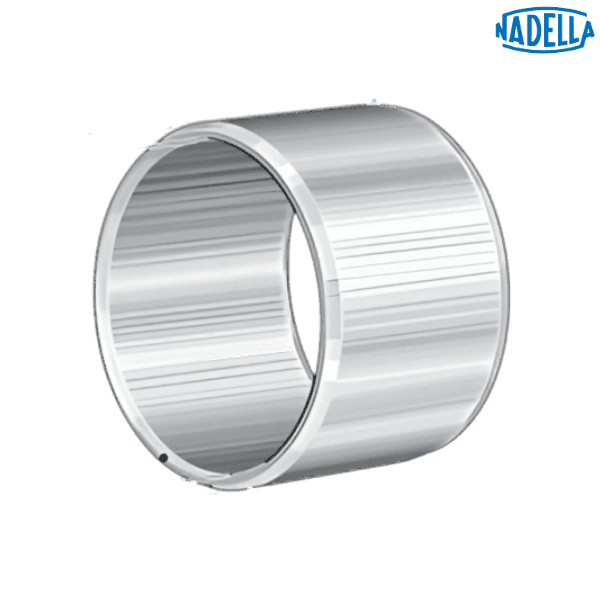

Item Number - JR90x105x35 NADELLA
Category - Inner Rings

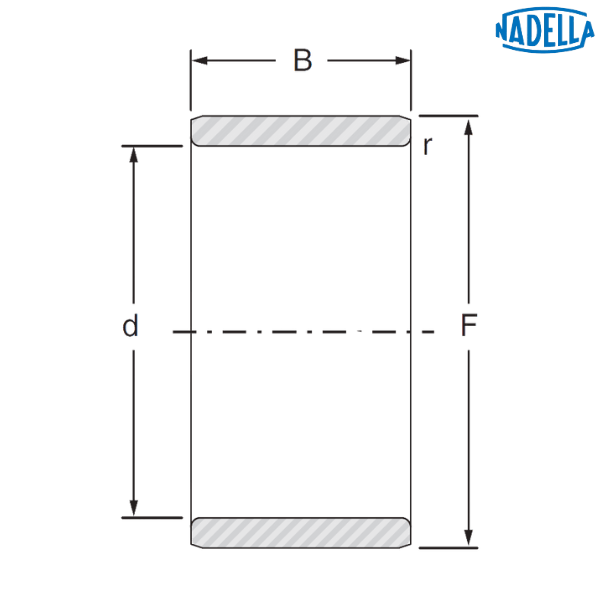

Principal Dimensions & Load Ratings (Metric) :
Inner Diameter (d) - 90 mm
Pitch Diameter (F) - 105 mm
Width(B) - 35 mm
Shaft Diameter(∅) - 90 mm
Minimum Chamfer Dimension(rs) - 1.1
Weight - 0.624 kg
Description of Suffixes and Prefixes:
JR - Inner ring for bushes and bearings, without lubrication hole
♦ ♦ Images are for representation purposes only
