Description
Brand - NADELLA
Item Number - JR85x100x63 NADELLA
Category - Inner Rings

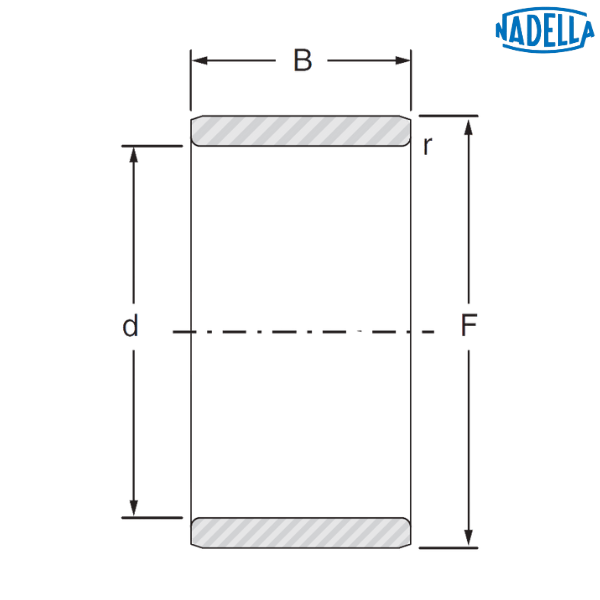

Principal Dimensions & Load Ratings (Metric) :
Inner Diameter (d) - 85 mm
Pitch Diameter (F) - 100 mm
Width(B) - 63 mm
Shaft Diameter(∅) - 85 mm
Minimum Chamfer Dimension(rs) - 1.1
Weight - 1.08 kg
Description of Suffixes and Prefixes:
JR - Inner ring for bushes and bearings, without lubrication hole

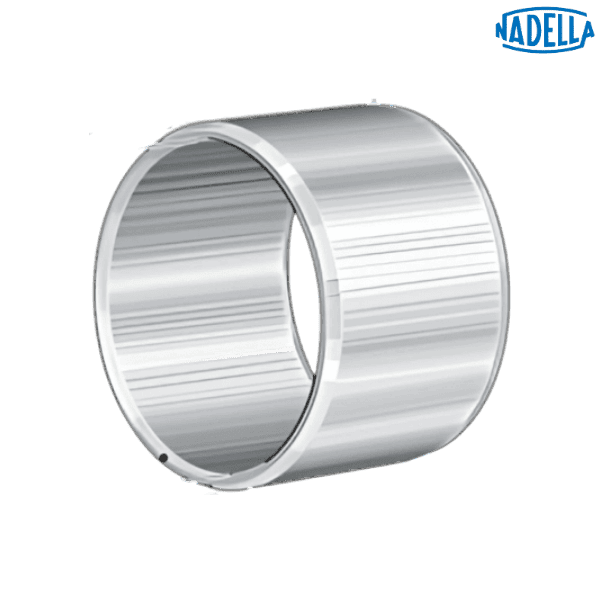

♦ ♦ Images are for representation purposes only
