Description
Brand - NADELLA

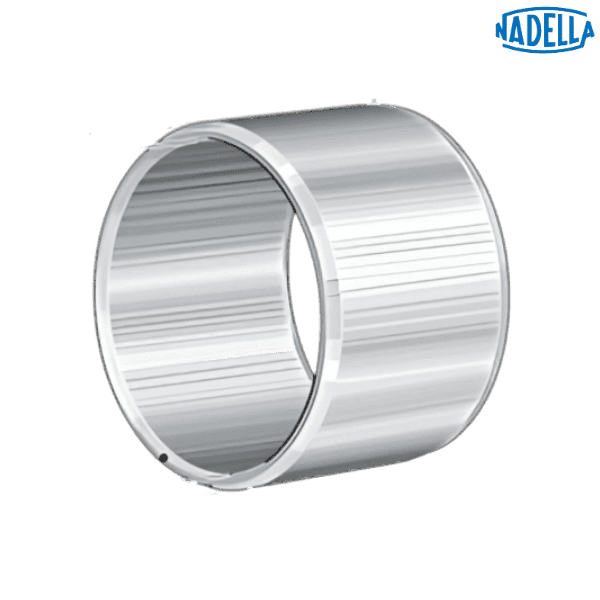

Item Number - JR15x18x16.5 NADELLA
Category - Internal Ring for Needle Bushes

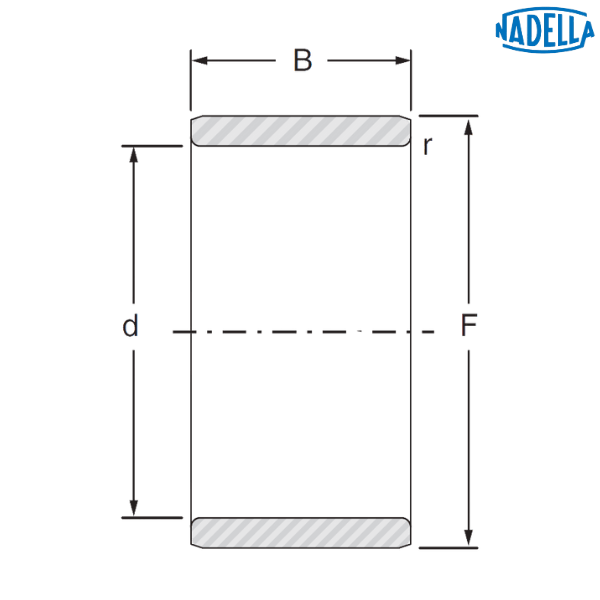

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 15 mm
Inner Diameter (d) - 15 mm
Outer Diameter (F) - 18 mm
Width (B) - 16.5 mm
Minimum Chamfer Dimension (rs) - 0.3 mm
Weight - 0.01 kg
Description of Suffixes and Prefixes :
JR - Inner ring for bushes and bearings, without lubrication hole
♦ ♦ Images are for representation purposes only
