Description
Brand - NADELLA
Item Number - JR 8x12x16 NADELLA
Category - Inner Rings

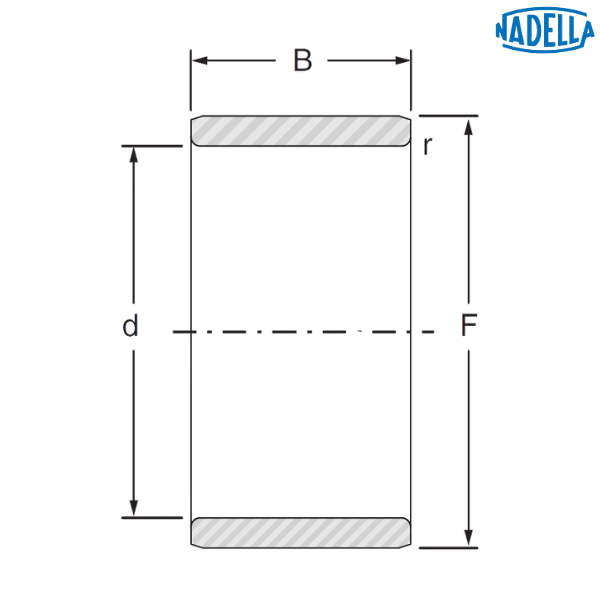

Principal Dimensions & Load Ratings (Metric) :
Inner Diameter (d) - 8 mm
Pitch Diameter (F) - 12 mm
Width(B) - 16 mm
Shaft Diameter(∅) - 8 mm
Minimum Chamfer Dimension(rs) - 0.3
Weight - 0.007 kg
Description of Suffixes and Prefixes:
JR - Inner ring for bushes and bearings, without lubrication hole

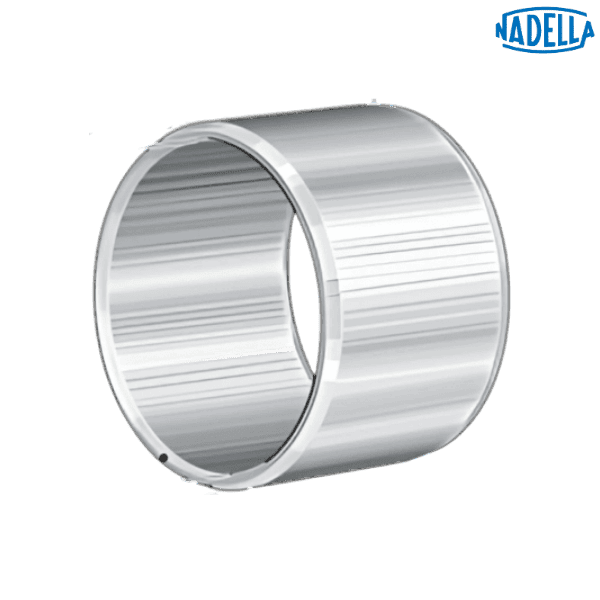

♦ ♦ Images are for representation purposes only
