Description
Brand - NADELLA
Item Number - JR 8x12x12.5 NADELLA
Category - Inner Rings for Standard Combined Bearing

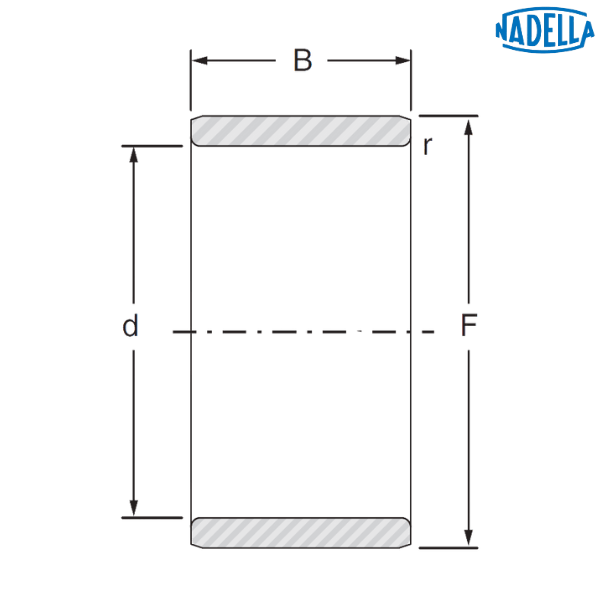

Principal Dimensions & Load Ratings (Metric) :
Inner Diameter (d) - 8 mm
Outer Diameter (F) - 12 mm
Width (B) - 12.5 mm
Shaft Diameter(∅) - 8 mm
Chamfer Dimension (r) - 0.3 mm
Weight - 0.0058 kg
For Combined Bearing - RAX 712
Description of Prefix :
JR - Inner ring for bushes and bearings, without lubrication hole

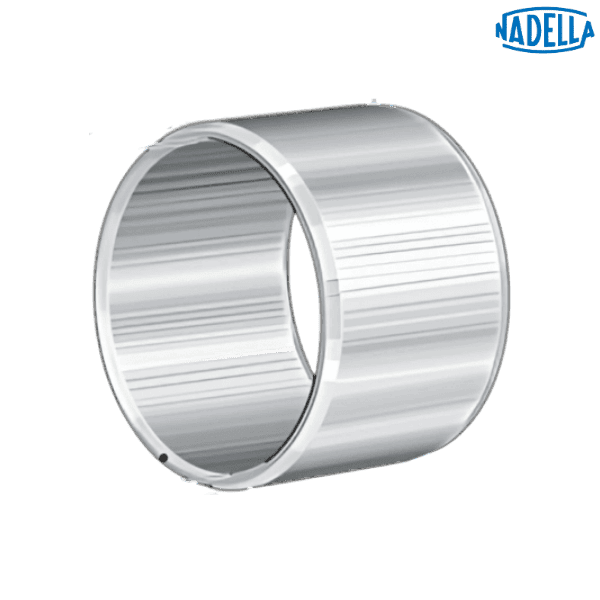

♦ ♦ Images are for representation purposes only
