Description
Brand - NADELLA
Item Number - JR 60x70x25 NADELLA
Category - Inner Rings for Standard Combined Bearing

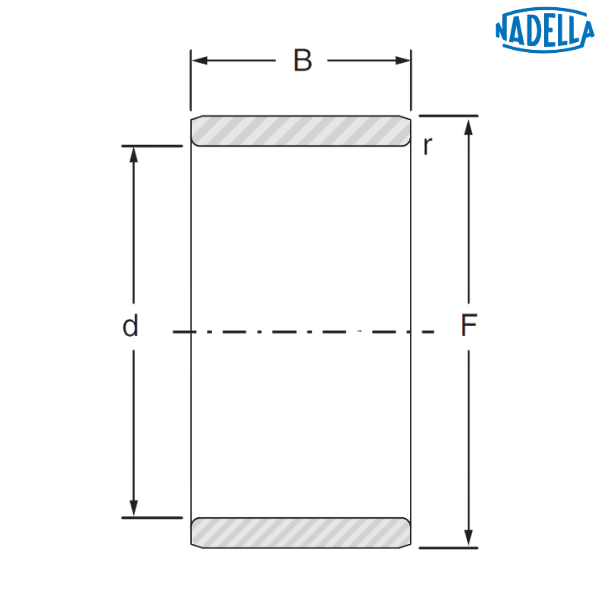

Principal Dimensions & Load Ratings (Metric) :
Inner Diameter (d) - 60 mm
Outer Diameter (F) - 70 mm
Width (B) - 25 mm
Shaft Diameter(∅) - 60 mm
Chamfer Dimension (r) - 0.85 mm
Weight - 0.19 kg
For Combined Bearing - RAX 470
Description of Prefix :
JR - Inner ring for bushes and bearings, without lubrication hole

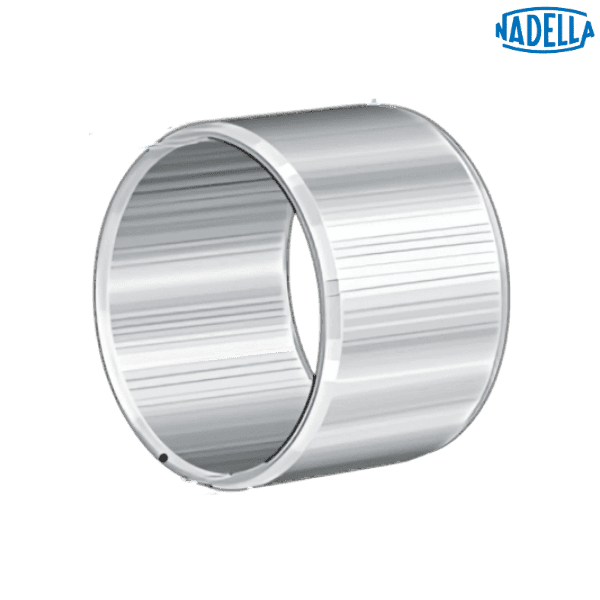

♦ ♦ Images are for representation purposes only
