Description
Brand - NADELLA
Item Number - JR 55x60x25 NADELLA
Category - Inner Rings for Standard Combined Bearing

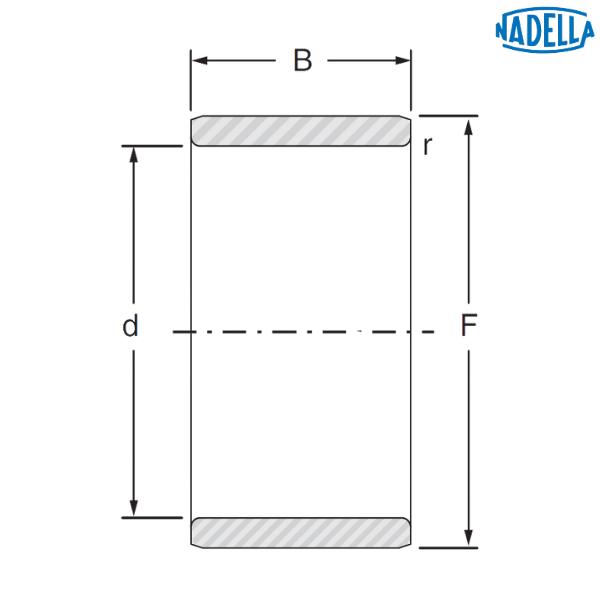

Principal Dimensions & Load Ratings (Metric) :
Inner Diameter (d) - 55 mm
Outer Diameter (F) - 60 mm
Width (B) - 25 mm
Shaft Diameter(∅) - 55 mm
Chamfer Dimension (r) - 0.65 mm
Weight - 0.084 kg
For Combined Bearing - RAX 460
Description of Prefix :
JR - Inner ring for bushes and bearings, without lubrication hole

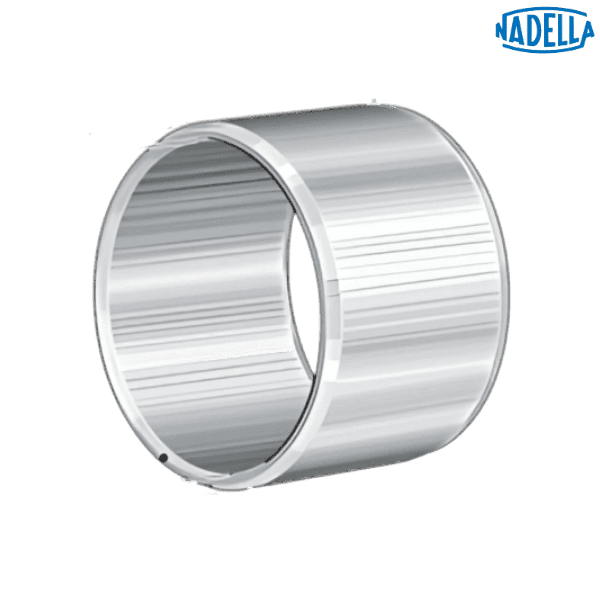

♦ ♦ Images are for representation purposes only
