Description
Brand - NADELLA
Item Number - JR 15x18x16.5 NADELLA
Category - Inner Rings for Standard Combined Bearing

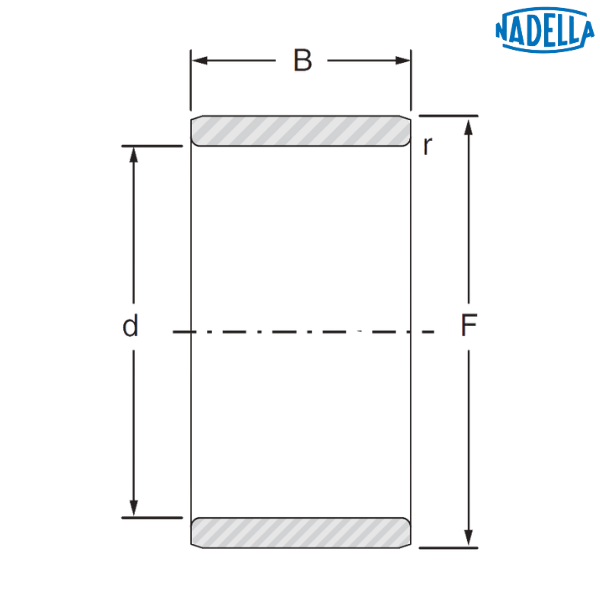

Principal Dimensions & Load Ratings (Metric) :
Inner Diameter (d) - 13 mm
Outer Diameter (F) - 18 mm
Width (B) - 16.5 mm
Shaft Diameter(∅) - 13 mm
Chamfer Dimension (r) - 0.35 mm
Weight - 0.015 kg
For Combined Bearing - RAX 718
Description of Prefix :
JR - Inner ring for bushes and bearings, without lubrication hole

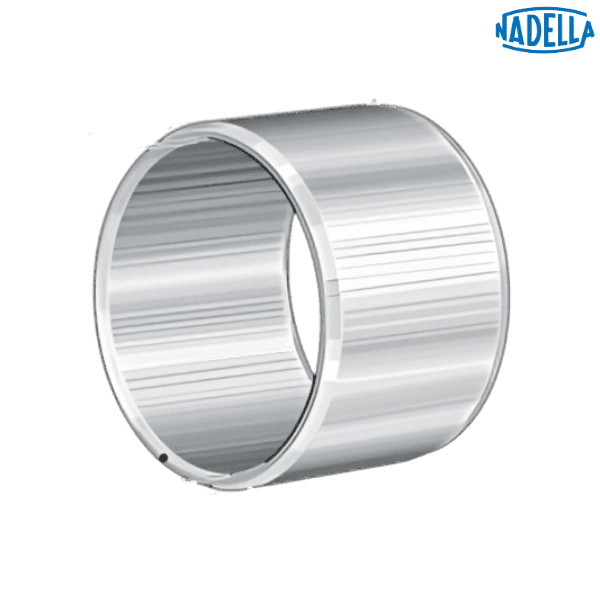

♦ ♦ Images are for representation purposes only
