Description
Brand - NADELLA
Item Number - JR 14x17x17 NADELLA

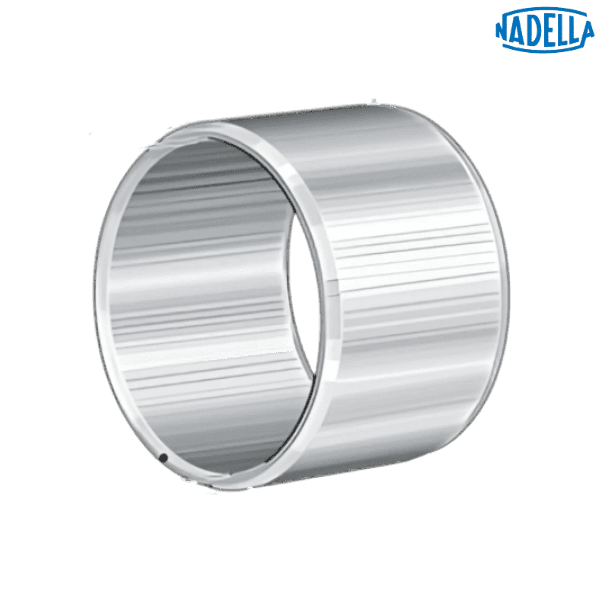

Category - Inner Rings for Standard Combined Bearing

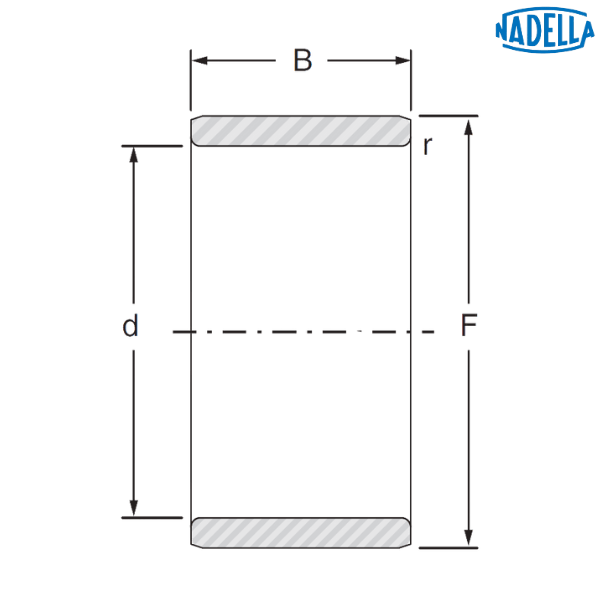

Principal Dimensions & Load Ratings (Metric) :
Inner Diameter (d) - 14 mm
Outer Diameter (F) - 17 mm
Width (B) - 17 mm
Shaft Diameter(∅) - 14 mm
Chamfer Dimension (r) - 0.2 mm
Weight - 0.0093 kg
For Combined Bearing - RAX 417
Description of Prefix :
JR - Inner ring for bushes and bearings, without lubrication hole
♦ ♦ Images are for representation purposes only
