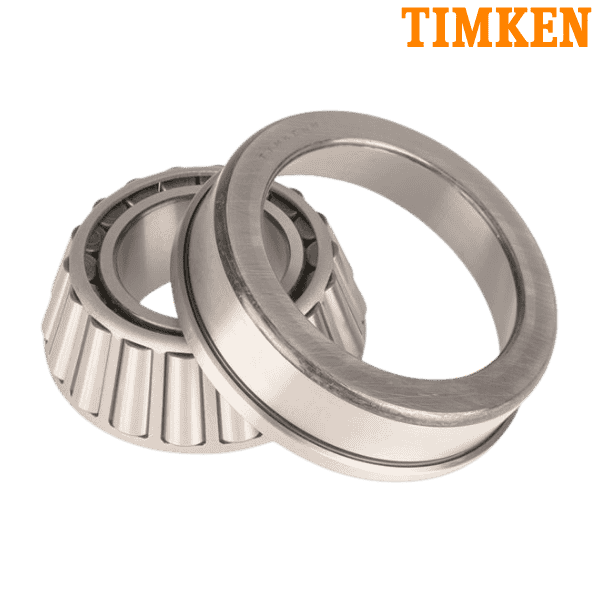

JP9049-JP9010-B TIMKEN

Brand - TIMKEN
Item Number - JP9049-JP9010-B TIMKEN
Category - Precision Tapered Roller Bearings - TSF(Tapered Single with Flange) Style
Bore Diameter (d) mm - 90
Bore Diameter (d) inch - 3.5433
Outer Diameter (D) mm - 135
Outer Diameter (D) inch - 5.315
Bearing Width to Flange (T1) mm - 10.5
Bearing Width to Flange (T1) inch - 0.4134
Static Radial Rating (C0) kN - 155
Static Radial Rating (C0) lbs - 34800
Dynamic Radial Rating (1 million revolutions) (C1) kN - 110
Dynamic Radial Rating (1 million revolutions) (C1) lbs - 24700
Dynamic Radial Rating (90 million revolutions) (C90) kN - 28.4
Dynamic Radial Rating (90 million revolutions) (C90) lbs - 6390
Dynamic Thrust Rating (90 million revolutions) (Ca90) kN - 24
Dynamic Thrust Rating (90 million revolutions) (Ca90) lbs - 5400
Flange Outer Diameter (D1) mm - 142
Flange Outer Diameter (D1) inch - 5.6
Flange Width (C2) mm - 4
Flange Width (C2) inch - 0.16
Cone Width (B) mm - 22.5
Cone Width (B) inch - 0.8858
Cup Width (C) mm - 17.5
Cup Width (C) inch - 0.689
Effective Center Location (a) mm - 5.6
Effective Center Location (a) inch - 0.22
Maximum Shaft Fillet Radius at Cone Backface (R) mm - 2
Maximum Shaft Fillet Radius at Cone Backface (R) inch - 0.08
Cone Frontface Backing Diameter (da) mm - 97
Cone Frontface Backing Diameter (da) inch - 3.82
Cone Backface Backing Diameter (db) mm - 100
Cone Backface Backing Diameter (db) inch - 3.94
Maximum Housing Fillet Radius at Cup Backface (r) mm - 2
Maximum Housing Fillet Radius at Cup Backface (r) inch - 0.08
Cup Frontface Backing Diameter (Da) mm - 133
Cup Frontface Backing Diameter (Da) inch - 5.24
Cup Backface Backing Diameter (Db) mm - 125
Cup Backface Backing Diameter (Db) inch - 4.92
Stiffness (Kr10^6) N/mm - 1.64
Stiffness (Kr10^6) lbs/in - 9.36
Stiffness (Fr) kN - 2.8
Stiffness (Fr) lbs - 629
Stiffness (Ka10) N/mm - 0.338
Stiffness (Ka10) lbs/in - 1.93
Stiffness (Fa) kN - 2.4
Stiffness (Fa) lbs - 540
Speed Rating (RPM) - 3600
Weight (kg) - 1.09
Weight (lbs) - 2.4
