JP8049-JP8010-B TIMKEN

Brand - TIMKEN
Item Number - JP8049-JP8010-B TIMKEN
Category - Precision Tapered Roller Bearings - TSF(Tapered Single with Flange) Style
Bore Diameter (d) mm - 80
Bore Diameter (d) inch - 3.1496
Outer Diameter (D) mm - 125
Outer Diameter (D) inch - 4.9213
Bearing Width to Flange (T1) mm - 10.5
Bearing Width to Flange (T1) inch - 0.4134
Static Radial Rating (C0) kN - 141
Static Radial Rating (C0) lbs - 31700
Dynamic Radial Rating (1 million revolutions) (C1) kN - 105
Dynamic Radial Rating (1 million revolutions) (C1) lbs - 23600
Dynamic Radial Rating (90 million revolutions) (C90) kN - 27.2
Dynamic Radial Rating (90 million revolutions) (C90) lbs - 6120
Dynamic Thrust Rating (90 million revolutions) (Ca90) kN - 21
Dynamic Thrust Rating (90 million revolutions) (Ca90) lbs - 4720
Flange Outer Diameter (D1) mm - 132
Flange Outer Diameter (D1) inch - 5.2
Flange Width (C2) mm - 4
Flange Width (C2) inch - 0.16
Cone Width (B) mm - 22.5
Cone Width (B) inch - 0.8858
Cup Width (C) mm - 17.5
Cup Width (C) inch - 0.689
Effective Center Location (a) mm - 2.3
Effective Center Location (a) inch - 0.09
Maximum Shaft Fillet Radius at Cone Backface (R) mm - 2
Maximum Shaft Fillet Radius at Cone Backface (R) inch - 0.08
Cone Frontface Backing Diameter (da) mm - 86
Cone Frontface Backing Diameter (da) inch - 3.39
Cone Backface Backing Diameter (db) mm - 89
Cone Backface Backing Diameter (db) inch - 3.5
Maximum Housing Fillet Radius at Cup Backface (r) mm - 2
Maximum Housing Fillet Radius at Cup Backface (r) inch - 0.08
Cup Frontface Backing Diameter (Da) mm - 129
Cup Frontface Backing Diameter (Da) inch - 5.08
Cup Backface Backing Diameter (Db) mm - 115
Cup Backface Backing Diameter (Db) inch - 4.53
Stiffness (Kr10^6) N/mm - 1.53
Stiffness (Kr10^6) lbs/in - 8.74
Stiffness (Fr) kN - 2.7
Stiffness (Fr) lbs - 607
Stiffness (Ka10) N/mm - 0.264
Stiffness (Ka10) lbs/in - 1.51
Stiffness (Fa) kN - 2.1
Stiffness (Fa) lbs - 472
Speed Rating (RPM) - 3900
Weight (kg) - 0.95
Weight (lbs) - 2.09

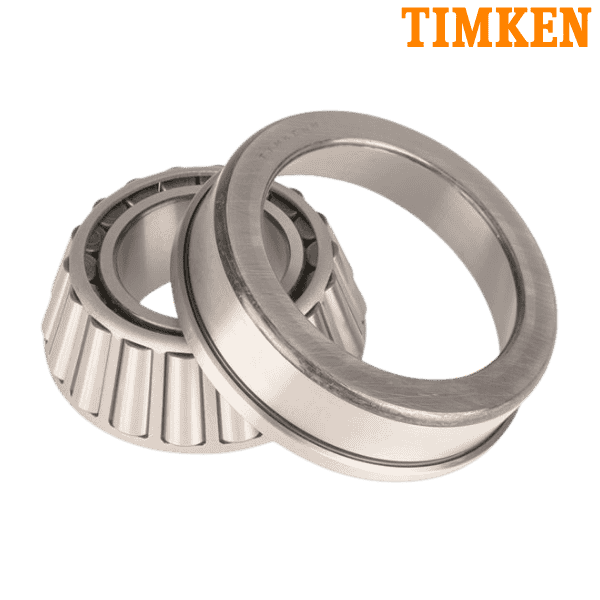

** Images are for representation purposes only
