JP7049-JP7010-B TIMKEN

Brand - TIMKEN
Item Number - JP7049-JP7010-B TIMKEN
Category - Precision Tapered Roller Bearings - TSF(Tapered Single with Flange) Style
Bore Diameter (d) mm - 70
Bore Diameter (d) inch - 2.7559
Outer Diameter (D) mm - 110
Outer Diameter (D) inch - 4.3307
Bearing Width to Flange (T1) mm - 8.5
Bearing Width to Flange (T1) inch - 0.3346
Static Radial Rating (C0) kN - 112
Static Radial Rating (C0) lbs - 25200
Dynamic Radial Rating (1 million revolutions) (C1) kN - 84.8
Dynamic Radial Rating (1 million revolutions) (C1) lbs - 19100
Dynamic Radial Rating (90 million revolutions) (C90) kN - 22
Dynamic Radial Rating (90 million revolutions) (C90) lbs - 4950
Dynamic Thrust Rating (90 million revolutions) (Ca90) kN - 17.4
Dynamic Thrust Rating (90 million revolutions) (Ca90) lbs - 3910
Flange Outer Diameter (D1) mm - 116
Flange Outer Diameter (D1) inch - 4.57
Flange Width (C2) mm - 3
Flange Width (C2) inch - 0.12
Cone Width (B) mm - 20
Cone Width (B) inch - 0.7874
Cup Width (C) mm - 15.5
Cup Width (C) inch - 0.6102
Effective Center Location (a) mm - 2.5
Effective Center Location (a) inch - 0.1
Maximum Shaft Fillet Radius at Cone Backface (R) mm - 2
Maximum Shaft Fillet Radius at Cone Backface (R) inch - 0.08
Cone Frontface Backing Diameter (da) mm - 76
Cone Frontface Backing Diameter (da) inch - 2.99
Cone Backface Backing Diameter (db) mm - 80
Cone Backface Backing Diameter (db) inch - 3.15
Maximum Housing Fillet Radius at Cup Backface (r) mm - 2
Maximum Housing Fillet Radius at Cup Backface (r) inch - 0.08
Cup Frontface Backing Diameter (Da) mm - 105.5
Cup Frontface Backing Diameter (Da) inch - 4.15
Cup Backface Backing Diameter (Db) mm - 101
Cup Backface Backing Diameter (Db) inch - 3.98
Stiffness (Kr10^6) N/mm - 1.33
Stiffness (Kr10^6) lbs/in - 7.59
Stiffness (Fr) kN - 2.2
Stiffness (Fr) lbs - 495
Stiffness (Ka10) N/mm - 0.239
Stiffness (Ka10) lbs/in - 1.36
Stiffness (Fa) kN - 1.7
Stiffness (Fa) lbs - 382
Speed Rating (RPM) - 4500
Weight (kg) - 0.69
Weight (lbs) - 1.52

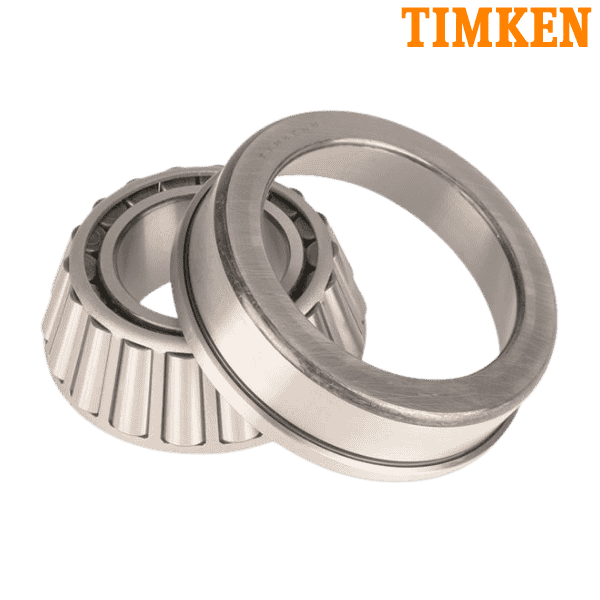

** Images are for representation purposes only
