JP6049-JP6010-B TIMKEN

Brand - TIMKEN
Item Number - JP6049-JP6010-B TIMKEN
Category - Precision Tapered Roller Bearings - TSF(Tapered Single with Flange) Style
Bore Diameter (d) mm - 60
Bore Diameter (d) inch - 2.3622
Outer Diameter (D) mm - 100
Outer Diameter (D) inch - 3.937
Bearing Width to Flange (T1) mm - 8.5
Bearing Width to Flange (T1) inch - 0.3346
Static Radial Rating (C0) kN - 101
Static Radial Rating (C0) lbs - 22700
Dynamic Radial Rating (1 million revolutions) (C1) kN - 80.9
Dynamic Radial Rating (1 million revolutions) (C1) lbs - 18200
Dynamic Radial Rating (90 million revolutions) (C90) kN - 21
Dynamic Radial Rating (90 million revolutions) (C90) lbs - 4720
Dynamic Thrust Rating (90 million revolutions) (Ca90) kN - 17
Dynamic Thrust Rating (90 million revolutions) (Ca90) lbs - 3820
Flange Outer Diameter (D1) mm - 105
Flange Outer Diameter (D1) inch - 4.13
Flange Width (C2) mm - 3
Flange Width (C2) inch - 0.12
Cone Width (B) mm - 20
Cone Width (B) inch - 0.7874
Cup Width (C) mm - 15.5
Cup Width (C) inch - 0.6102
Effective Center Location (a) mm - 1.3
Effective Center Location (a) inch - 0.05
Maximum Shaft Fillet Radius at Cone Backface (R) mm - 2
Maximum Shaft Fillet Radius at Cone Backface (R) inch - 0.08
Cone Frontface Backing Diameter (da) mm - 66
Cone Frontface Backing Diameter (da) inch - 2.6
Cone Backface Backing Diameter (db) mm - 69
Cone Backface Backing Diameter (db) inch - 2.72
Maximum Housing Fillet Radius at Cup Backface (r) mm - 2
Maximum Housing Fillet Radius at Cup Backface (r) inch - 0.08
Cup Frontface Backing Diameter (Da) mm - 98
Cup Frontface Backing Diameter (Da) inch - 3.86
Cup Backface Backing Diameter (Db) mm - 91
Cup Backface Backing Diameter (Db) inch - 3.58
Stiffness (Kr10^6) N/mm - 1.22
Stiffness (Kr10^6) lbs/in - 6.97
Stiffness (Fr) kN - 2.1
Stiffness (Fr) lbs - 472
Stiffness (Ka10) N/mm - 0.231
Stiffness (Ka10) lbs/in - 1.32
Stiffness (Fa) kN - 1.7
Stiffness (Fa) lbs - 382
Speed Rating (RPM) - 5100
Weight (kg) - 0.61
Weight (lbs) - 1.34

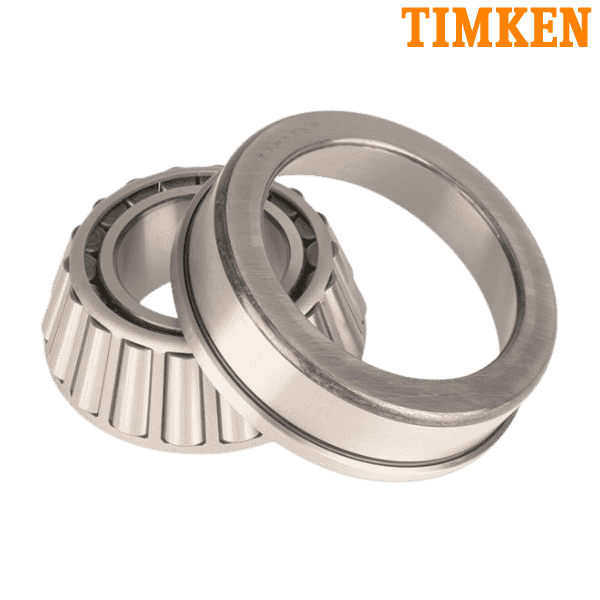

** Images are for representation purposes only
