Description
Brand - TIMKEN
Item Number - JP17049P-JP17019HR TIMKEN
Category - Precision Tapered Roller Bearings - TSHR (Hydra-Rib and Spring-Rib) Style
Bore Diameter (d) mm - 170
Bore Diameter (d) inch - 6.6929
Flange Diameter (D1) mm - 248
Flange Diameter (D1) inch - 9.7638
Seat Diameter (D) mm - 240
Seat Diameter (D) inch - 9.4488
Width (T1) mm - 30
Width (T1) inch - 1.1811
Load Rating (90 million revolutions) (C90) kN - 62.9
Load Rating (90 million revolutions) (C90) lbs - 14100
Cup Width (C) mm - 79
Cup Width (C) inch - 3.1102
Seat Width (C1) mm - 15
Seat Width (C1) inch - 0.5906
Effective Center Location (a) mm - -4.8
Effective Center Location (a) inch - -0.19
Shaft Radius (R) mm - 3
Shaft Radius (R) inch - 0.12
Shaft Shoulder Diameter (mm) - 182
Shaft Shoulder Diameter (inch) - 7.17
Housing Radius (r) mm - 1
Housing Radius (r) inch - 0.04
Stiffness (Kr10^6) N/mm - 3.36
Stiffness (Kr10^6) lbs/in - 19.2
Stiffness (Fr) kN - 6.29
Stiffness (Fr) lbs - 1410
Stiffness (Ka10^6) N/mm - 0.432
Stiffness (Ka10^6) lbs/in - 2.47
Stiffness (Fa) kN - 4.19
Stiffness (Fa) lbs - 943

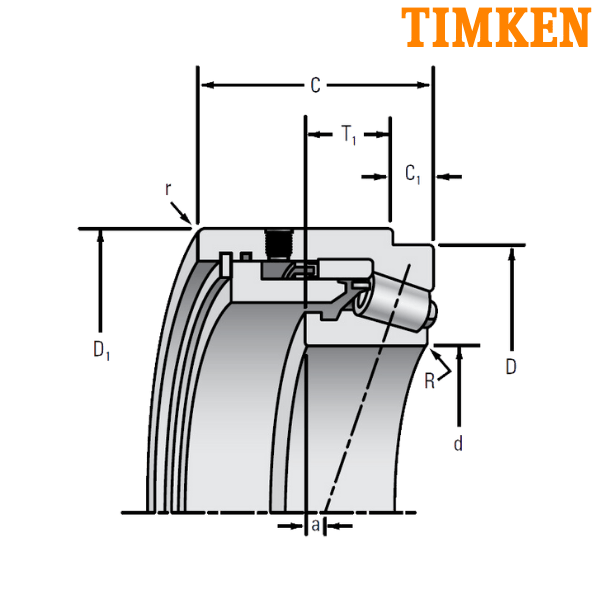

** Images are for representation purposes only
