Description
Brand - TIMKEN
Item Number - JP16043P-JP16019HR TIMKEN
Category - Precision Tapered Roller Bearings - TSHR (Hydra-Rib and Spring-Rib) Style

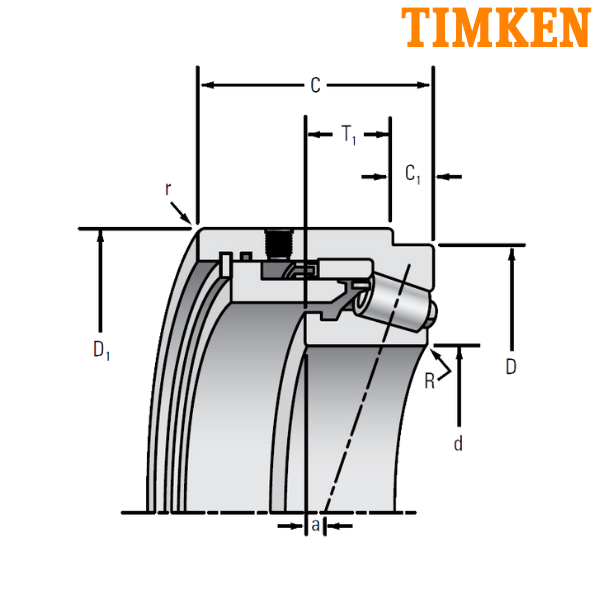

Bore Diameter (d) mm - 155
Bore Diameter (d) inch - 6.1024
Flange Diameter (D1) mm - 235
Flange Diameter (D1) inch - 9.252
Seat Diameter (D) mm - 227
Seat Diameter (D) inch - 8.937
Width (T1) mm - 30
Width (T1) inch - 1.1811
Load Rating (90 million revolutions) (C90) kN - 60.9
Load Rating (90 million revolutions) (C90) lbs - 13700
Cup Width (C) mm - 76
Cup Width (C) inch - 2.9921
Seat Width (C1) mm - 15
Seat Width (C1) inch - 0.5906
Effective Center Location (a) mm - -5.1
Effective Center Location (a) inch - -0.2
Shaft Radius (R) mm - 3
Shaft Radius (R) inch - 0.12
Shaft Shoulder Diameter (mm) - 169
Shaft Shoulder Diameter (inch) - 6.65
Housing Radius (r) mm - 1
Housing Radius (r) inch - 0.04
Stiffness (Kr10^6) N/mm - 3.16
Stiffness (Kr10^6) lbs/in - 18
Stiffness (Fr) kN - 6.09
Stiffness (Fr) lbs - 1370
Stiffness (Ka10^6) N/mm - 0.441
Stiffness (Ka10^6) lbs/in - 2.52
Stiffness (Fa) kN - 4.24
Stiffness (Fa) lbs - 953

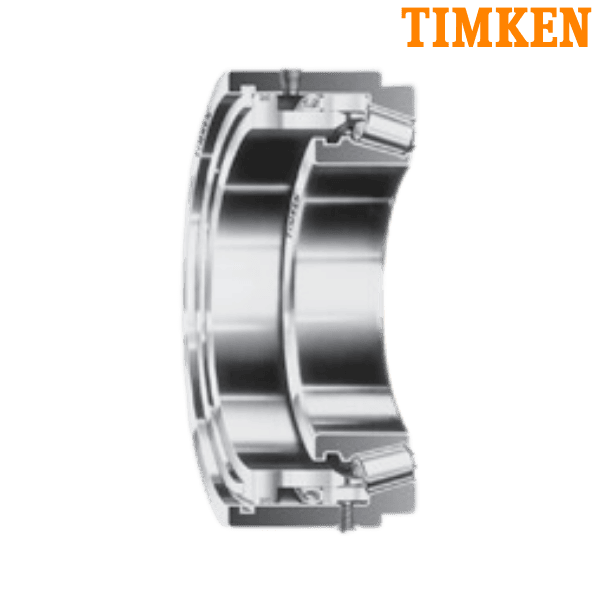

** Images are for representation purposes only
