JP14049-JP14010-B TIMKEN

Brand - TIMKEN
Item Number - JP14049-JP14010-B TIMKEN
Category - Precision Tapered Roller Bearings - TSF(Tapered Single with Flange) Style
Bore Diameter (d) mm - 140
Bore Diameter (d) inch - 5.5118
Outer Diameter (D) mm - 195
Outer Diameter (D) inch - 7.6772
Bearing Width to Flange (T1) mm - 13
Bearing Width to Flange (T1) inch - 0.5118
Static Radial Rating (C0) kN - 304
Static Radial Rating (C0) lbs - 68300
Dynamic Radial Rating (1 million revolutions) (C1) kN - 188
Dynamic Radial Rating (1 million revolutions) (C1) lbs - 42300
Dynamic Radial Rating (90 million revolutions) (C90) kN - 48.8
Dynamic Radial Rating (90 million revolutions) (C90) lbs - 11000
Dynamic Thrust Rating (90 million revolutions) (Ca90) kN - 42
Dynamic Thrust Rating (90 million revolutions) (Ca90) lbs - 9440
Flange Outer Diameter (D1) mm - 202
Flange Outer Diameter (D1) inch - 7.95
Flange Width (C2) mm - 5
Flange Width (C2) inch - 0.2
Cone Width (B) mm - 27
Cone Width (B) inch - 1.063
Cup Width (C) mm - 21
Cup Width (C) inch - 0.8268
Effective Center Location (a) mm - 11.9
Effective Center Location (a) inch - 0.47
Maximum Shaft Fillet Radius at Cone Backface (R) mm - 3
Maximum Shaft Fillet Radius at Cone Backface (R) inch - 0.12
Cone Frontface Backing Diameter (da) mm - 148
Cone Frontface Backing Diameter (da) inch - 5.83
Cone Backface Backing Diameter (db) mm - 153
Cone Backface Backing Diameter (db) inch - 6.02
Maximum Housing Fillet Radius at Cup Backface (r) mm - 3
Maximum Housing Fillet Radius at Cup Backface (r) inch - 0.12
Cup Frontface Backing Diameter (Da) mm - 198
Cup Frontface Backing Diameter (Da) inch - 7.8
Cup Backface Backing Diameter (Db) mm - 182
Cup Backface Backing Diameter (Db) inch - 7.17
Stiffness (Kr10^6) N/mm - 2.6
Stiffness (Kr10^6) lbs/in - 14.85
Stiffness (Fr) kN - 4.9
Stiffness (Fr) lbs - 1102
Stiffness (Ka10) N/mm - 0.556
Stiffness (Ka10) lbs/in - 3.17
Stiffness (Fa) kN - 4.2
Stiffness (Fa) lbs - 944
Speed Rating (RPM) - 2400
Weight (kg) - 2.31
Weight (lbs) - 5.09

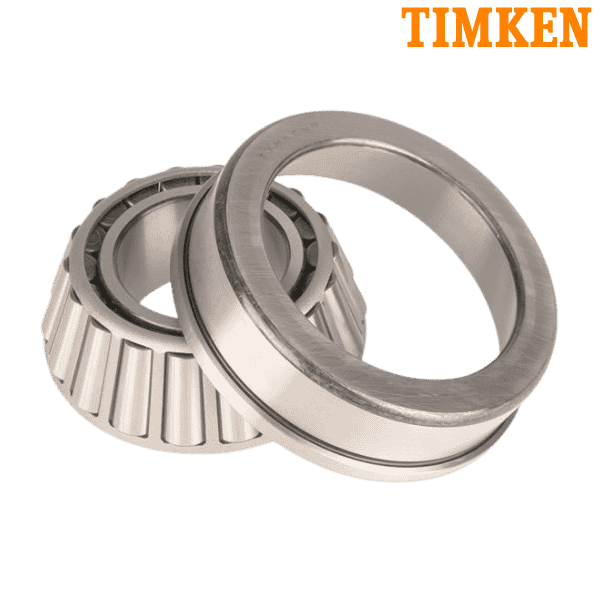

** Images are for representation purposes only
