JP13049-JP13010-B TIMKEN

Brand - TIMKEN
Item Number - JP13049-JP13010-B TIMKEN
Category - Precision Tapered Roller Bearings - TSF(Tapered Single with Flange) Style
Bore Diameter (d) mm - 130
Bore Diameter (d) inch - 5.1181
Outer Diameter (D) mm - 185
Outer Diameter (D) inch - 7.2835
Bearing Width to Flange (T1) mm - 13
Bearing Width to Flange (T1) inch - 0.5118
Static Radial Rating (C0) kN - 283
Static Radial Rating (C0) lbs - 63600
Dynamic Radial Rating (1 million revolutions) (C1) kN - 181
Dynamic Radial Rating (1 million revolutions) (C1) lbs - 40700
Dynamic Radial Rating (90 million revolutions) (C90) kN - 47
Dynamic Radial Rating (90 million revolutions) (C90) lbs - 10600
Dynamic Thrust Rating (90 million revolutions) (Ca90) kN - 38.1
Dynamic Thrust Rating (90 million revolutions) (Ca90) lbs - 8570
Flange Outer Diameter (D1) mm - 192
Flange Outer Diameter (D1) inch - 7.56
Flange Width (C2) mm - 5
Flange Width (C2) inch - 0.2
Cone Width (B) mm - 27
Cone Width (B) inch - 1.063
Cup Width (C) mm - 21
Cup Width (C) inch - 0.8268
Effective Center Location (a) mm - 8.9
Effective Center Location (a) inch - 0.35
Maximum Shaft Fillet Radius at Cone Backface (R) mm - 3
Maximum Shaft Fillet Radius at Cone Backface (R) inch - 0.12
Cone Frontface Backing Diameter (da) mm - 137
Cone Frontface Backing Diameter (da) inch - 5.39
Cone Backface Backing Diameter (db) mm - 143
Cone Backface Backing Diameter (db) inch - 5.63
Maximum Housing Fillet Radius at Cup Backface (r) mm - 3
Maximum Housing Fillet Radius at Cup Backface (r) inch - 0.12
Cup Frontface Backing Diameter (Da) mm - 188
Cup Frontface Backing Diameter (Da) inch - 7.4
Cup Backface Backing Diameter (Db) mm - 172
Cup Backface Backing Diameter (Db) inch - 6.77
Stiffness (Kr10^6) N/mm - 2.45
Stiffness (Kr10^6) lbs/in - 13.99
Stiffness (Fr) kN - 4.7
Stiffness (Fr) lbs - 1057
Stiffness (Ka10) N/mm - 0.464
Stiffness (Ka10) lbs/in - 2.65
Stiffness (Fa) kN - 3.8
Stiffness (Fa) lbs - 854
Speed Rating (RPM) - 2600
Weight (kg) - 2.2
Weight (lbs) - 4.85

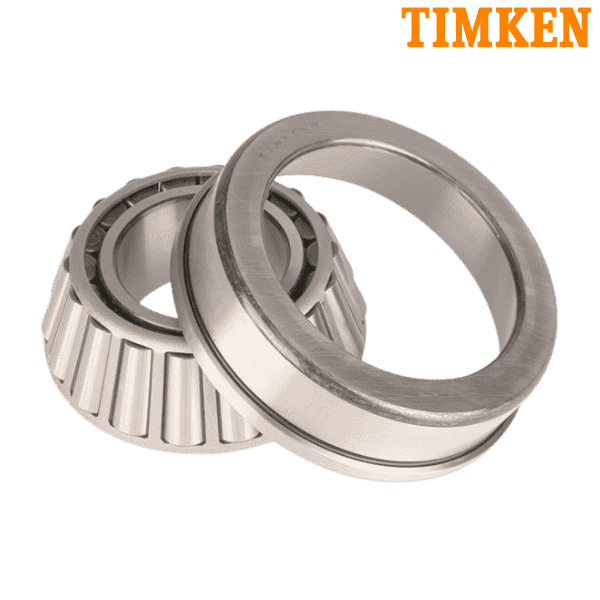

** Images are for representation purposes only
