Description
Brand - TIMKEN
Item Number - JP11035-JP11019HR TIMKEN
Category - Precision Tapered Roller Bearings - TSHR (Hydra-Rib and Spring-Rib) Style
Bore Diameter (d) mm - 100
Bore Diameter (d) inch - 3.937
Flange Diameter (D1) mm - 178
Flange Diameter (D1) inch - 7.0079
Seat Diameter (D) mm - 170
Seat Diameter (D) inch - 6.6929
Width (T1) mm - 27
Width (T1) inch - 1.063
Load Rating (90 million revolutions) (C90) kN - 34.1
Load Rating (90 million revolutions) (C90) lbs - 7660
Cup Width (C) mm - 70
Cup Width (C) inch - 2.7559
Seat Width (C1) mm - 12
Seat Width (C1) inch - 0.4724
Effective Center Location (a) mm - 10.4
Effective Center Location (a) inch - 0.41
Shaft Radius (R) mm - 3
Shaft Radius (R) inch - 0.12
Shaft Shoulder Diameter (mm) - 114
Shaft Shoulder Diameter (inch) - 4.49
Housing Radius (r) mm - 1
Housing Radius (r) inch - 0.04
Stiffness (Kr10^6) N/mm - 2.05
Stiffness (Kr10^6) lbs/in - 11.7
Stiffness (Fr) kN - 3.41
Stiffness (Fr) lbs - 766
Stiffness (Ka10^6) N/mm - 0.224
Stiffness (Ka10^6) lbs/in - 1.28
Stiffness (Fa) kN - 2.1
Stiffness (Fa) lbs - 471

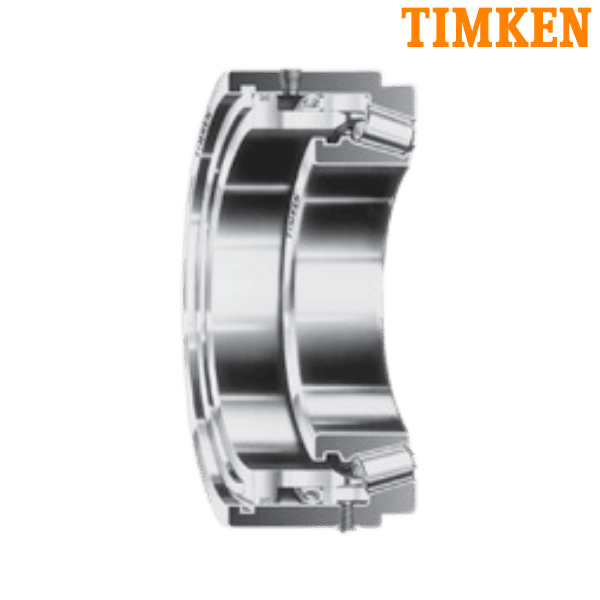

** Images are for representation purposes only
